Installing (2.8L, 4V - Engine Code AXK)

Set drive plate onto crankshaft.

Insert at least 3 old securing bolts and tighten to 30 Nm.

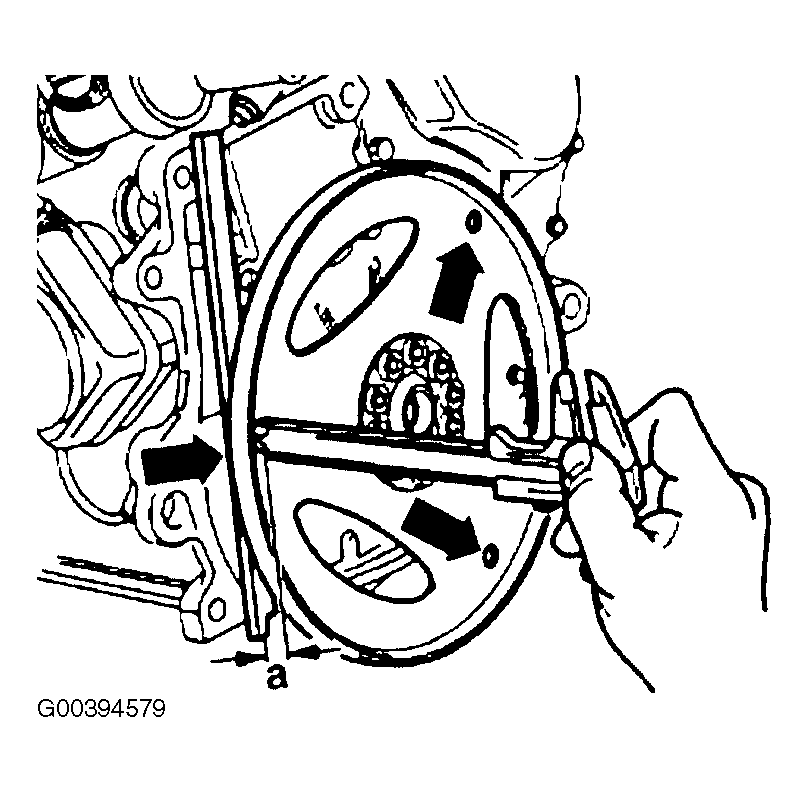

Measure dimension -a- via 3 holes for converter securing via assisting ruler and depth measurement and calculate mean value. See Figure .

Compare specified values to mean value (measured distance plus ruler thickness).

Specification: 15.7 to 16.5 mm

If specified value is exceeded:

NOTE: Only a shim of appropriate thickness may be used for compensation.

If specified value is not obtained:

Insert new securing bolts and hand-tighten.
Tighten securing bolts to 60 Nm plus another 90 degree turn (1/4 turn) (additional rotation can occur in several stages).
