Replacing Selector Shaft Steel Spring And Bolt

Remove steel spring -arrow- and lever from selector shaft in transmission. For better clarification the selector shaft is illustrated here in a removed state. See Fig 1 .

NOTE: Always replace bolt with steel spring for manual selector valve.

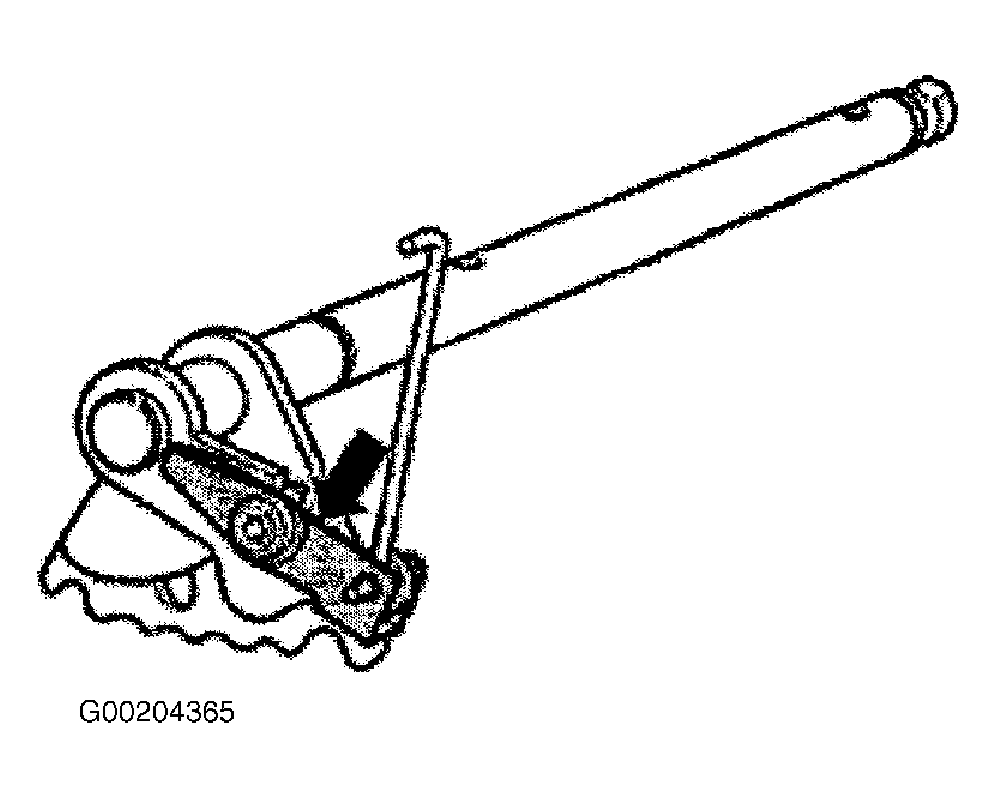

Fig 1: Locating Steel Spring On Selector Shaft

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Install steel spring and bolt to selector shaft. Do NOT tighten yet!
