Special Tools And Equipment
VW 309 Holding plate
VW 313 Support clamp
VW 353 Transmission support
VW 402 Thrust plate
VW 412 Press tool
VW 415 A Tube
VW 418 A Tube
3110 Tube
3267 Assembly ring
3336 Transmission lifting beam
VAG 1331 Torque wrench

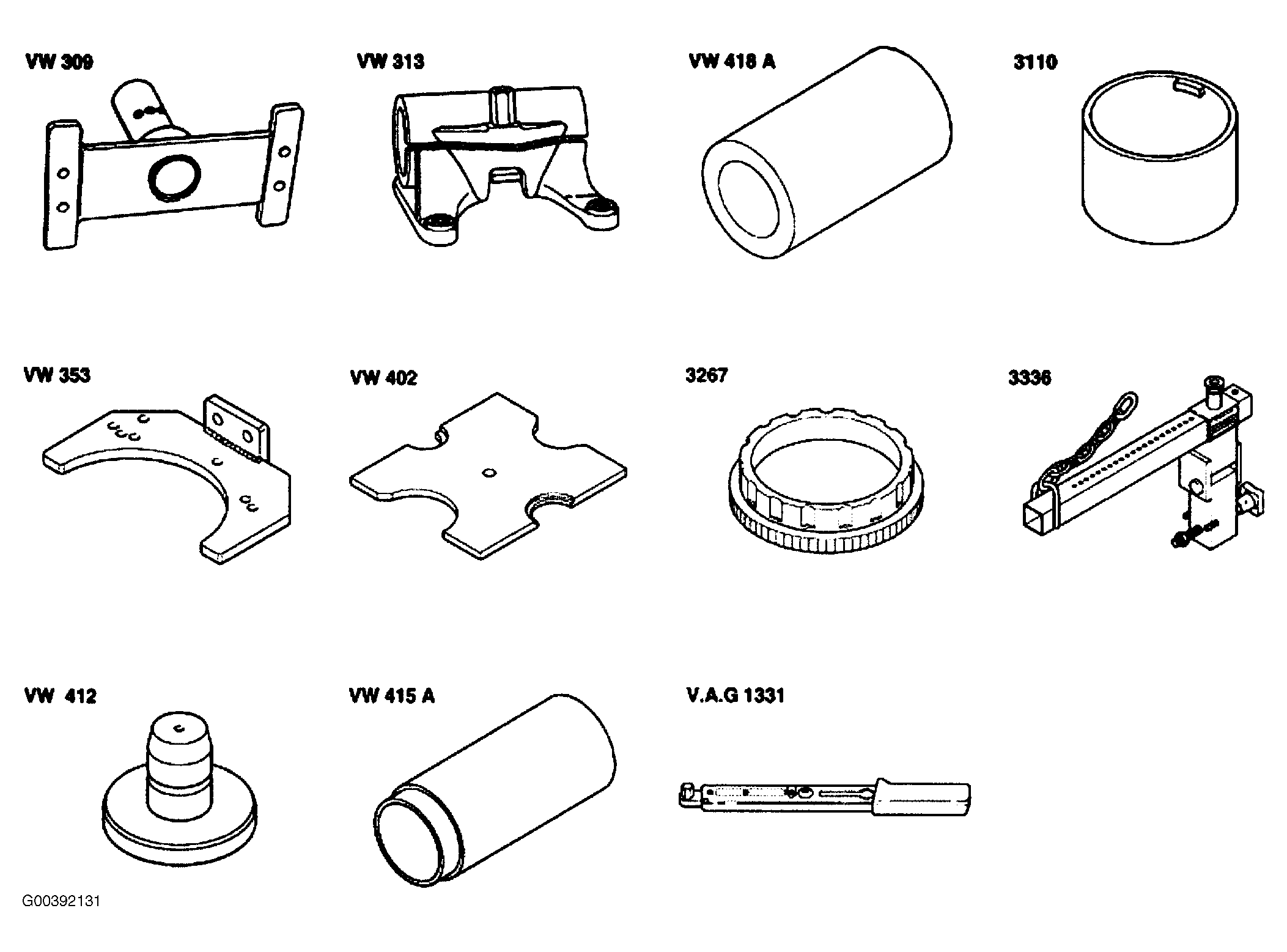

Fig 1: Identifying Planetary Transmission Removal & Installation Special Tools
Courtesy of VOLKSWAGEN UNITED STATES, INC.
