Installing Shim -A-

Example: If the measured value is 2.00 mm, insert a 1.7 mm thick shim.

Remove small input shaft bolt.

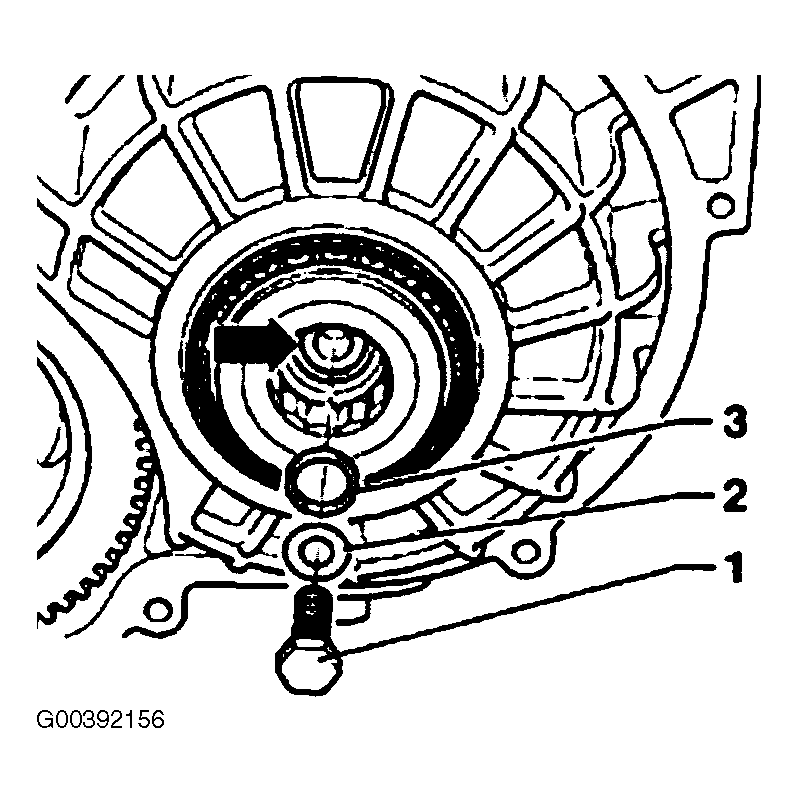

Install determined shim -3- onto small input shaft (arrow). See Figure . Tighten small input shaft bolt -1- with washer -2- to 30 Nm.

Carry out planet carrier check measurement. See Planet Carrier Check Measurement  .
