ATF Cooler And ATF Filler Tube, Removing And Installing

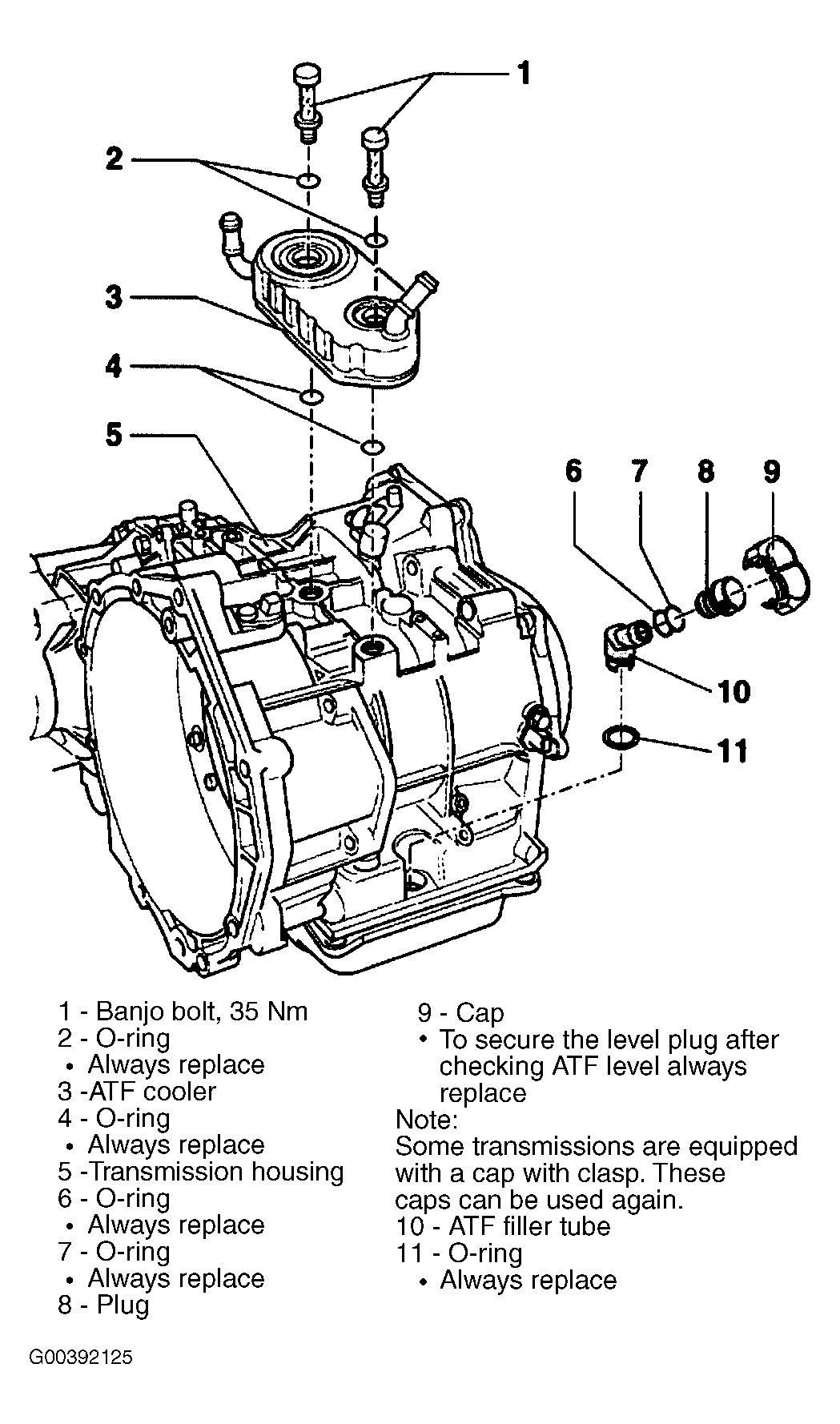

Fig 1: Removal & Installation Of ATF Cooler & ATF Filler Tube
G00392125Courtesy of VOLKSWAGEN UNITED STATES, INC.
