Installation Position Of Spring Supporting Plate, Checking CIRCLIP

Circlip (arrow) must be seated in the groove of clutch housing. Spring supporting plate must be centered relative to hub. See Fig 1 .

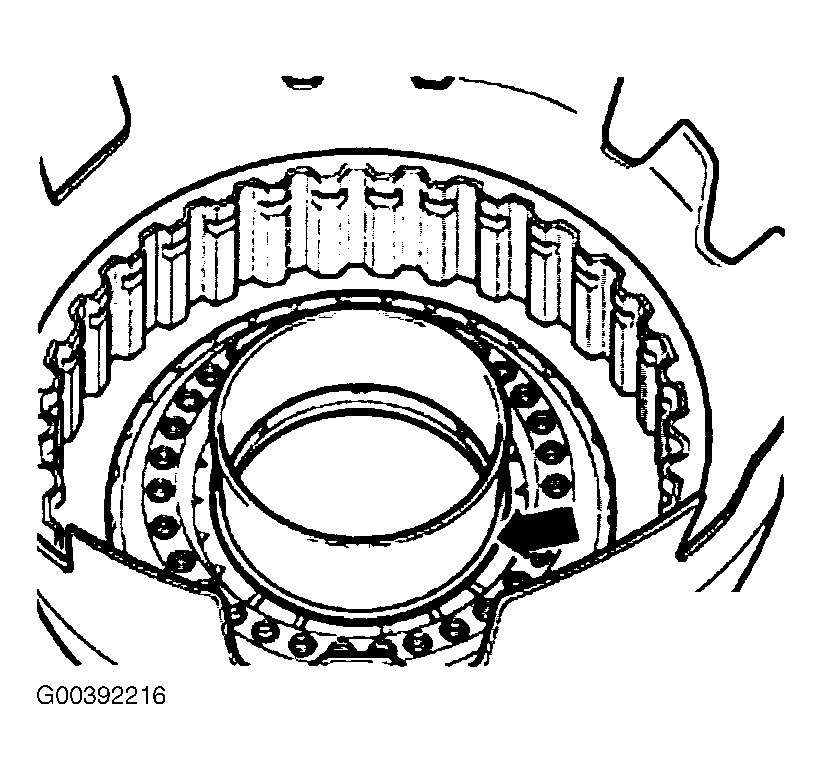

Fig 1: Identifying Installation Position Of Reverse Gear Clutch Spring Supporting Plate

Courtesy of VOLKSWAGEN UNITED STATES, INC.
