Removing And Installing Selector Shaft With Selector Segments

With valve body installed do not damage the conductor strip.

Remove selector segment spring -A-. See Fig 1 .

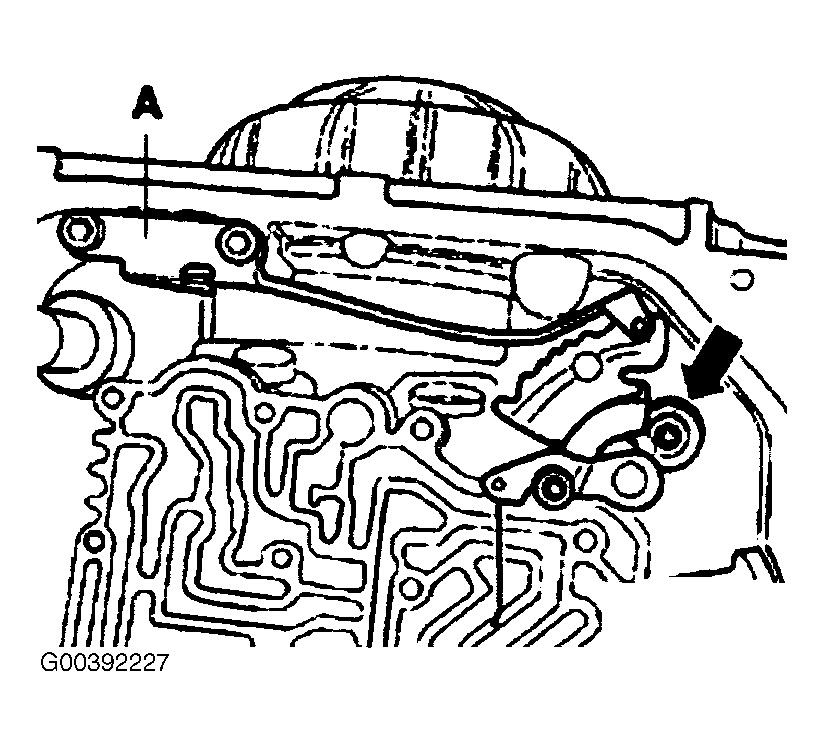

Fig 1: Removing & Installing Selector Shaft W/ Selector Segments

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove screw with washer (arrow).

The washer prevents selector shaft movement.
