Removing And Installing Bearing Supporting Ring

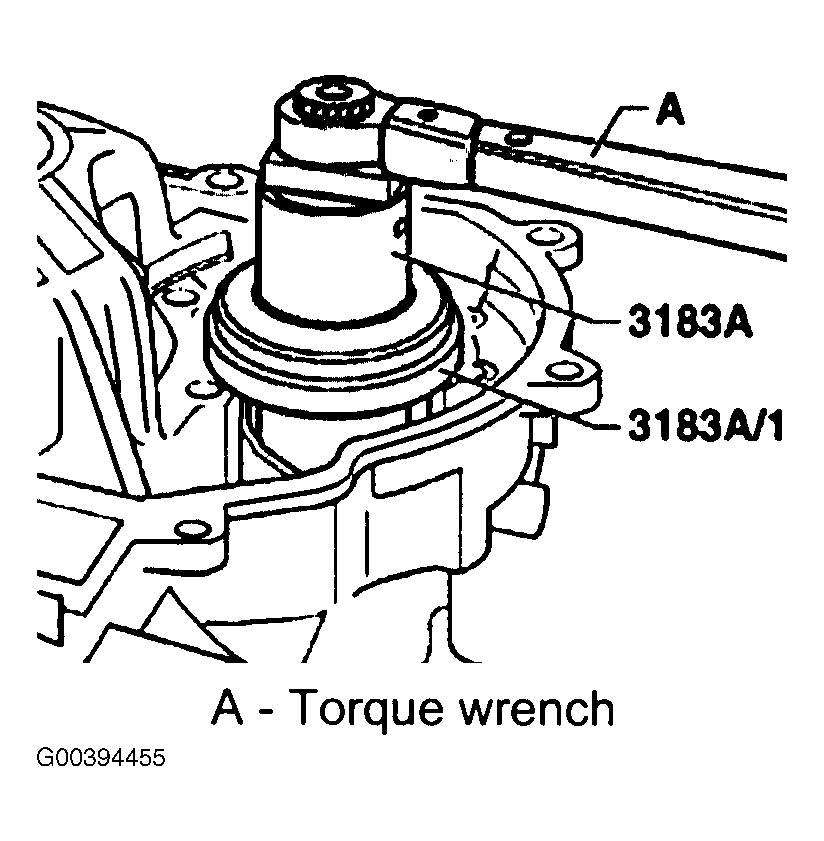

Fig 1: Removing & Installing Bearing Supporting Ring (Drive Pinion)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove locking bolt.

Tighten bearing support ring and secure with locking screw. Insert screw with AKD 456 000 01 sealant. Tighten to specification. See Figure .
