Installing Heated Final Drive Gear Wheel
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Heat final drive gear wheel to approx. 100° C.

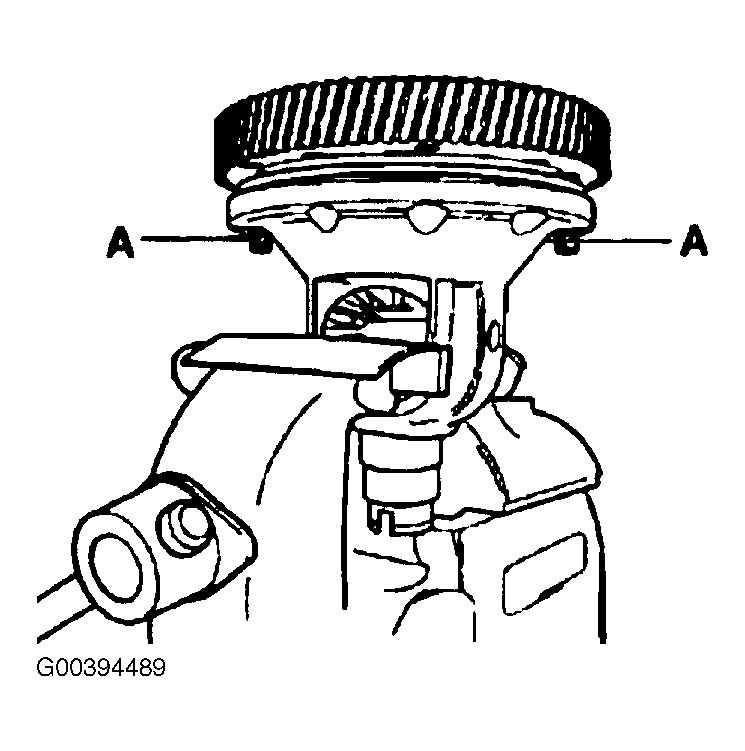

Install final drive gear wheel over centering pins -A- (local manufacturer) on differential cage.
NOTE:
Recess in gear wheel faces toward differential cage.
