Inserting Differential Bevel Gears In Transmissions With One-Piece Thrust Washers

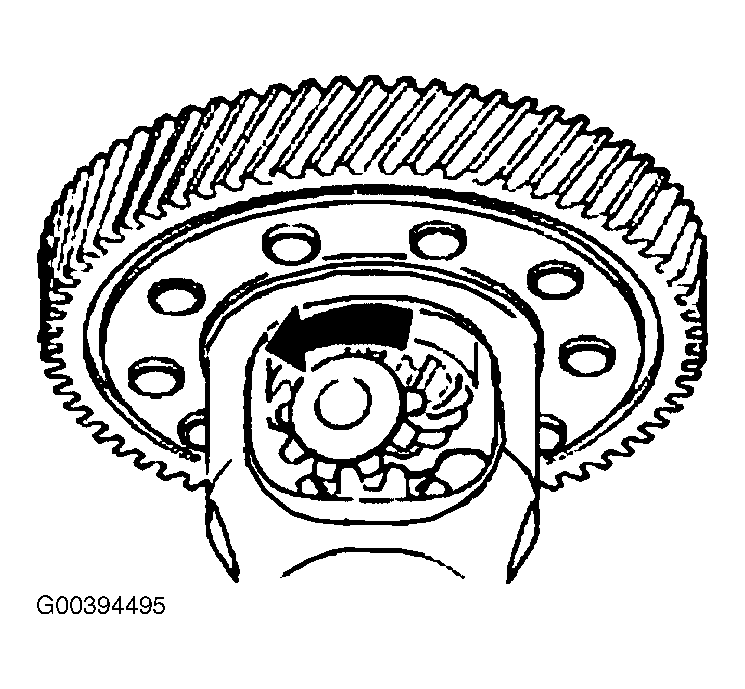

Fig 1: Inserting Differential Bevel Gears In Transmissions With One-Piece Thrust Washers

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Lubricate one piece thrust washer with transmission fluid and install.

Install both sun wheels and secure (e.g. with flange shaft).

Insert planet wheels (180° apart) and pivot into position.

Drive planet wheel axis shaft into final position and secure with spring pin.
