Adjustments To Be Completed After Replacing Individual Components
NOTE:

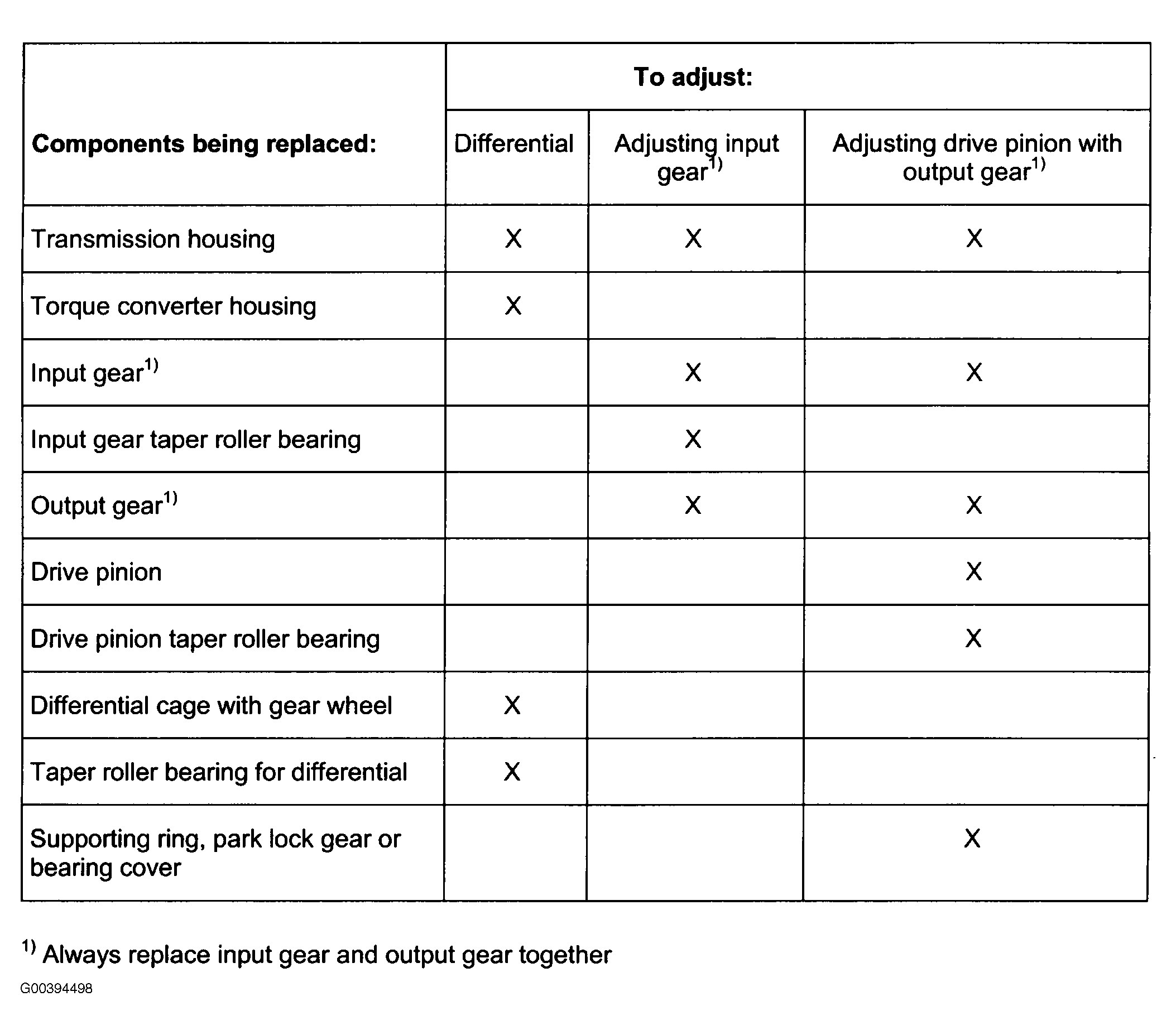

When working on transmission the following components only require adjustment if individual components have been replaced that directly affect the final drive adjustment. To eliminate unnecessary adjustments observe following table: Fig 1
