Position Of Selector Elements

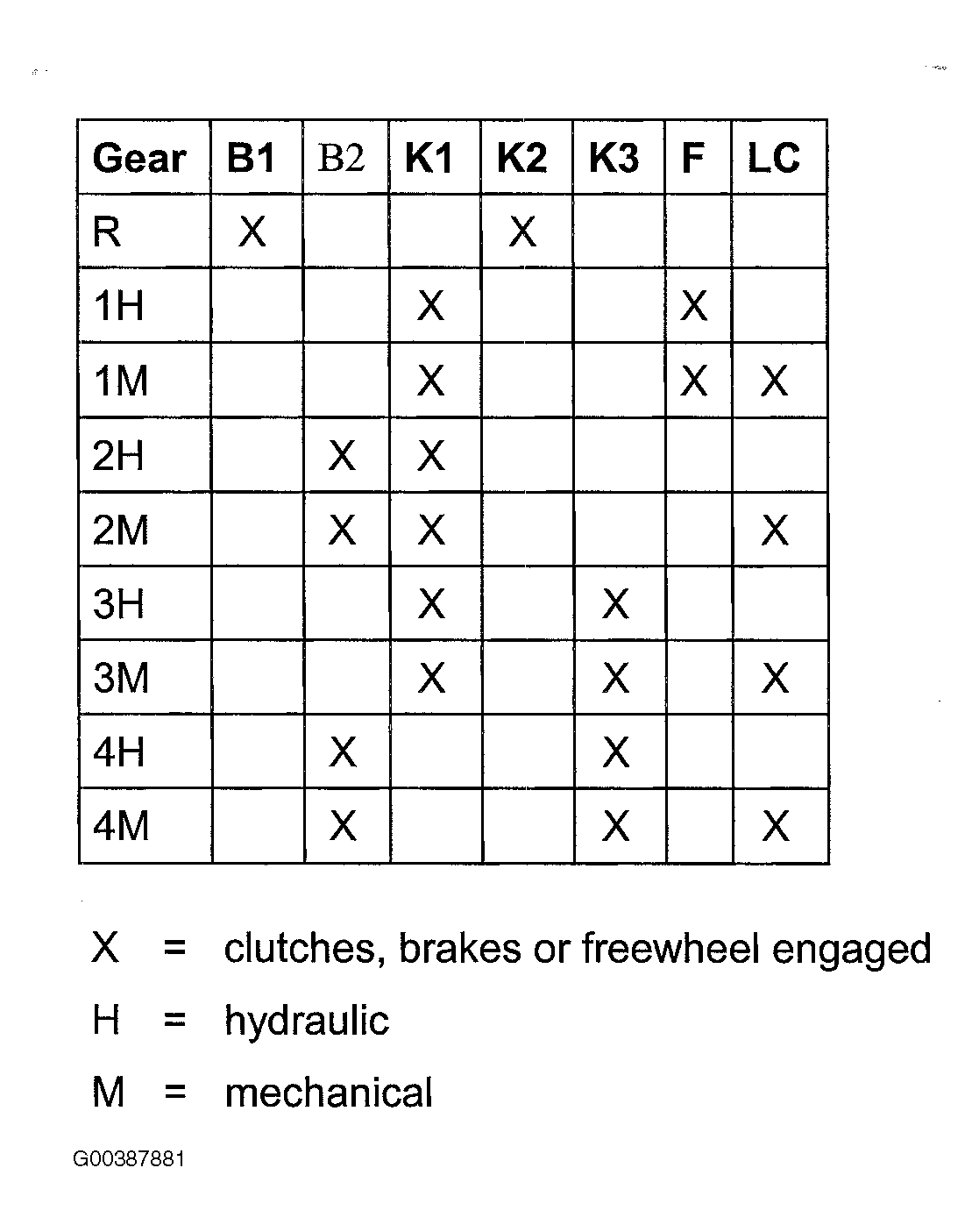

Fig 1 shows which selector elements are operated in the individual gears to help deal with complaints regarding poor acceleration and speed performance or generally with drive train questions. The table makes it possible to determine which selector elements may not be operating properly.
All gears will be shifted hydraulically. All forward gears are driven mechanically at a predetermined load and speed via the torque converter lock-up clutch.
