Control Module -J217- Multi-Pin Connector (68 Pin) Assignment (Sockets On V.A.G 1598/18)

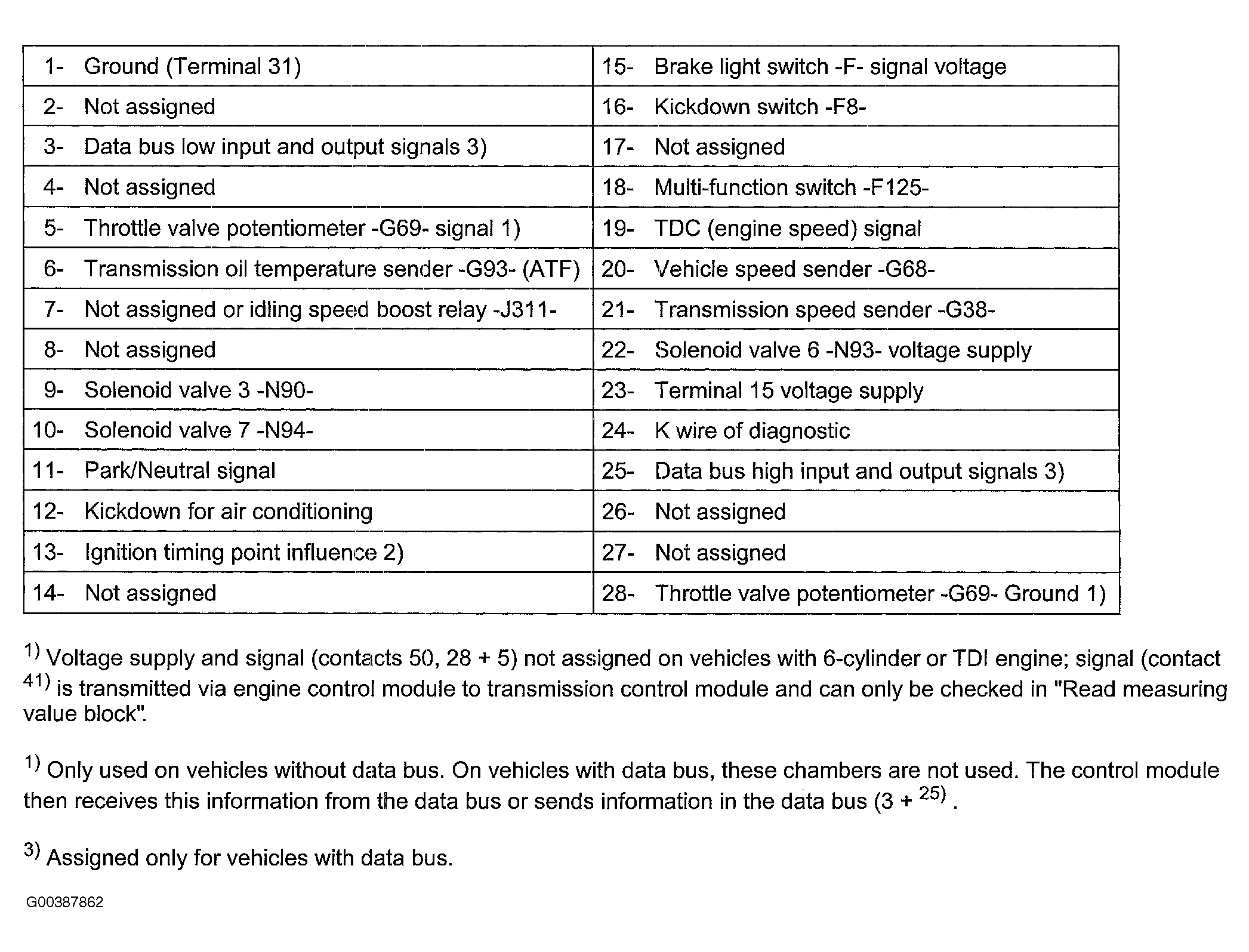

Fig 1: Control Module Connector Pin Assignment (1 Of 3)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 2: Control Module Connector Pin Assignment (2 Of 3)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

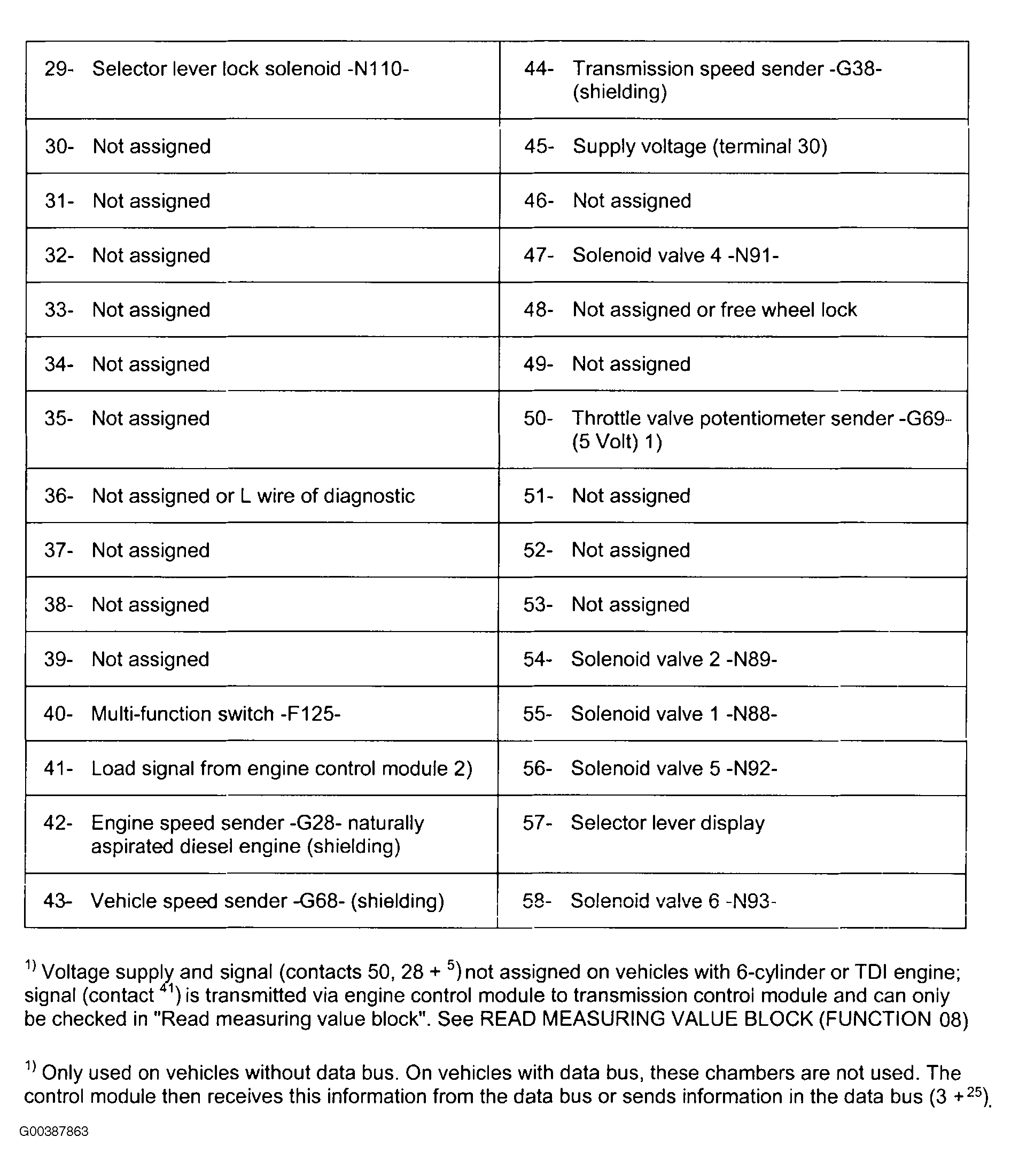

Fig 3: Control Module Connector Pin Assignment (3 Of 3)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
