On Board Diagnostic - Guide

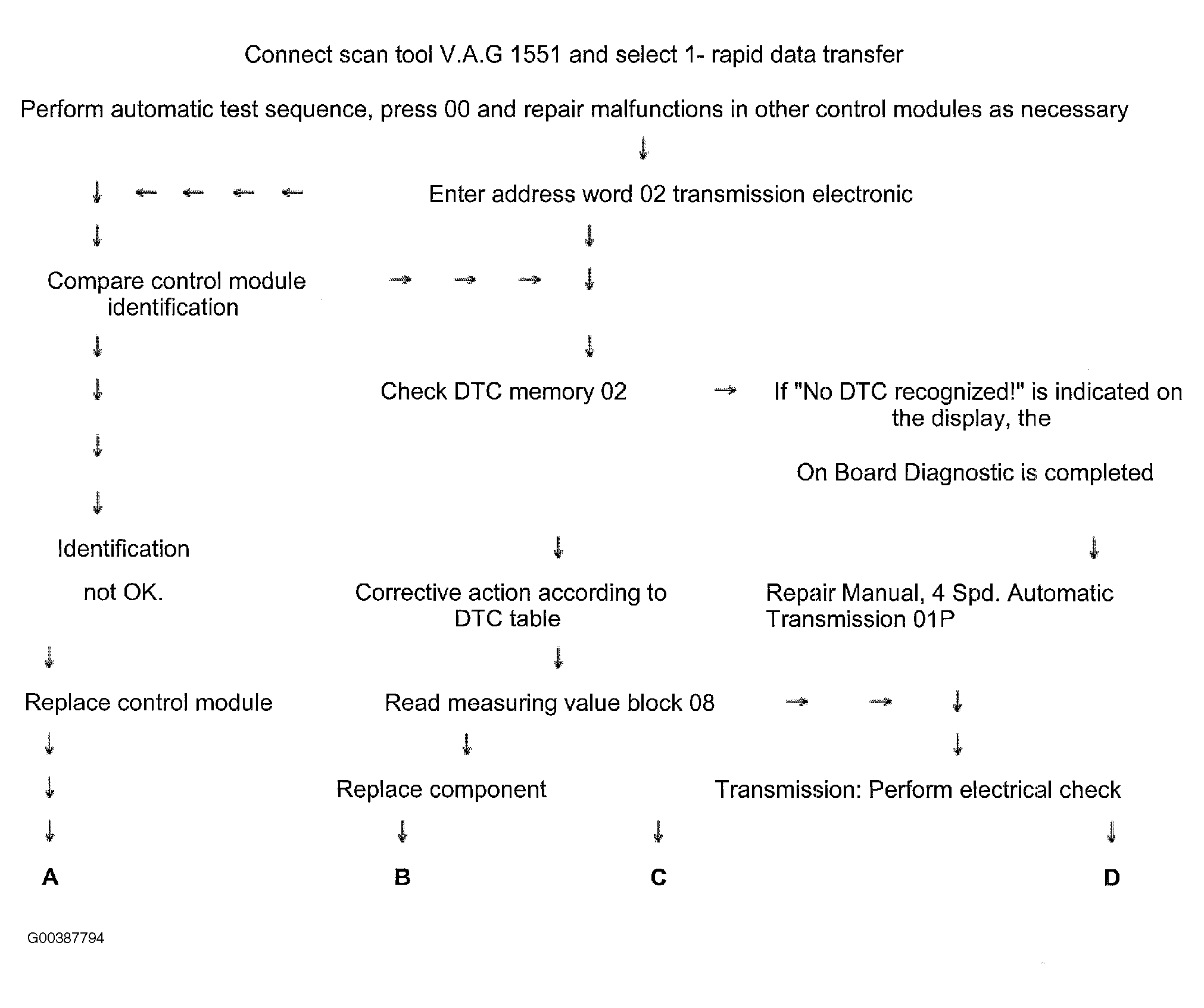

Fig 1: Troubleshooting "Automatic Transmission" (1 Of 2)
G00387794Courtesy of VOLKSWAGEN UNITED STATES, INC.

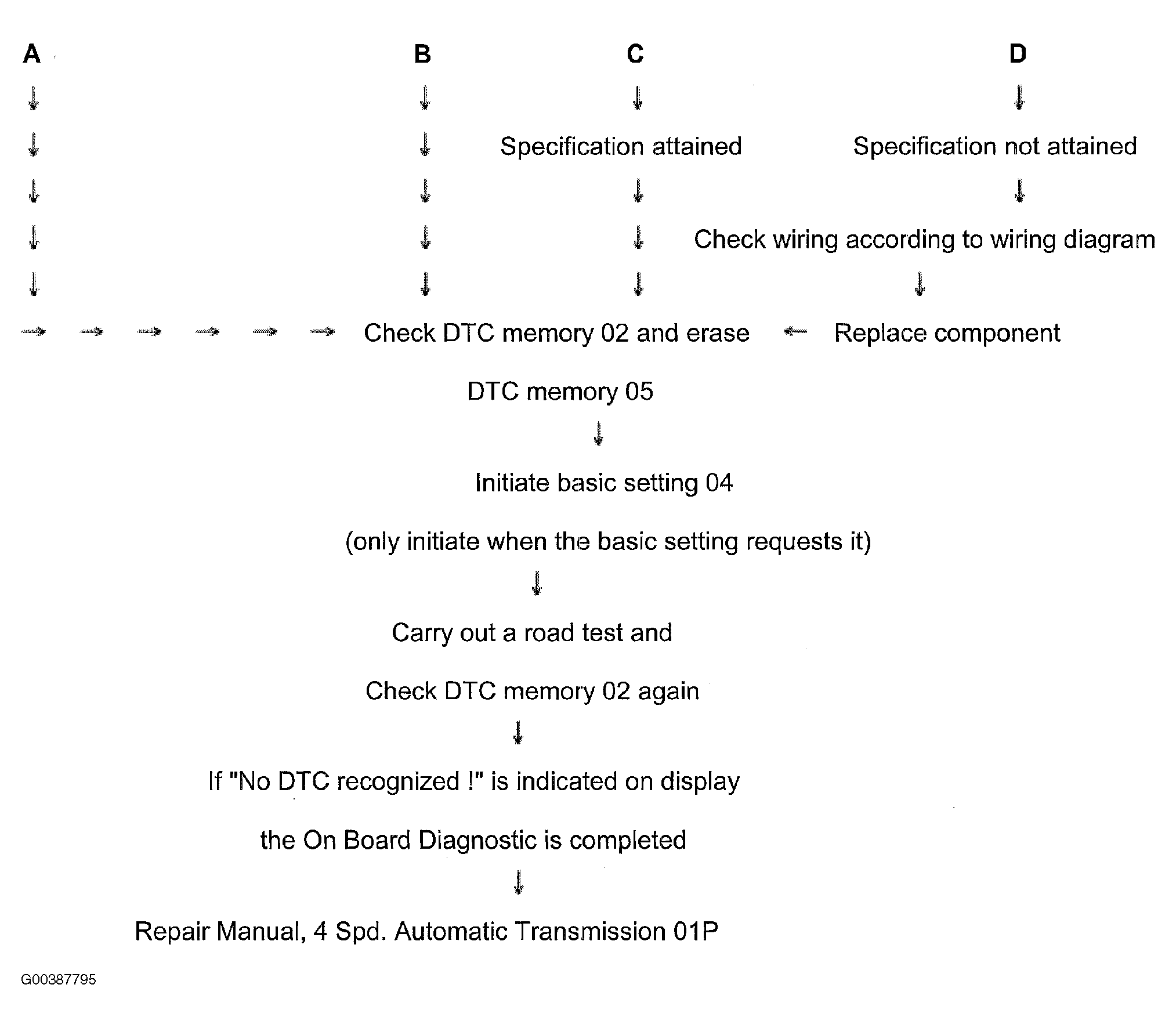

Fig 2: Troubleshooting "Automatic Transmission" (2 Of 2)
G00387795Courtesy of VOLKSWAGEN UNITED STATES, INC.

If after completing the On Board Diagnostic the automatic transmission continues to malfunction, then continue troubleshooting using troubleshooting program.
