Floor Jack

Vehicle may only be lifted with a floor jack at points indicated for use with lifting platform. See Fig 1 and Fig 2 . Lift front of vehicle on crossmember. Lift rear of vehicle on rear control arm mounting. To prevent damage always use a suitable rubber or wooden block.

CAUTION: On no account should the vehicle be lifted under the engine oil pan, transmission, on front or rear axle or on side members as this may cause serious damage.

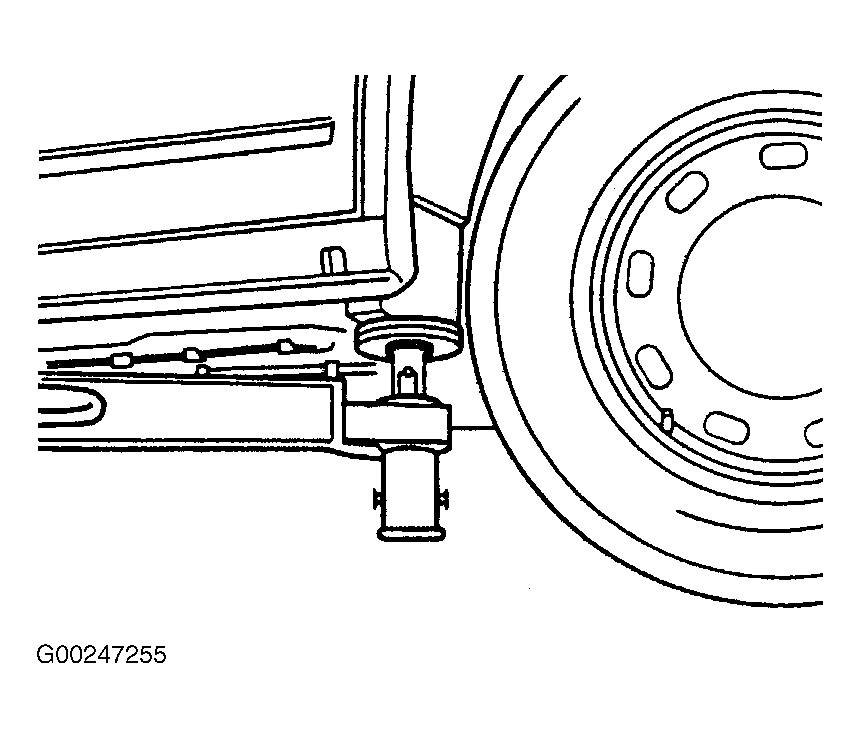

Fig 1: Floor Jack Lifting Point (Front Of Vehicle)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

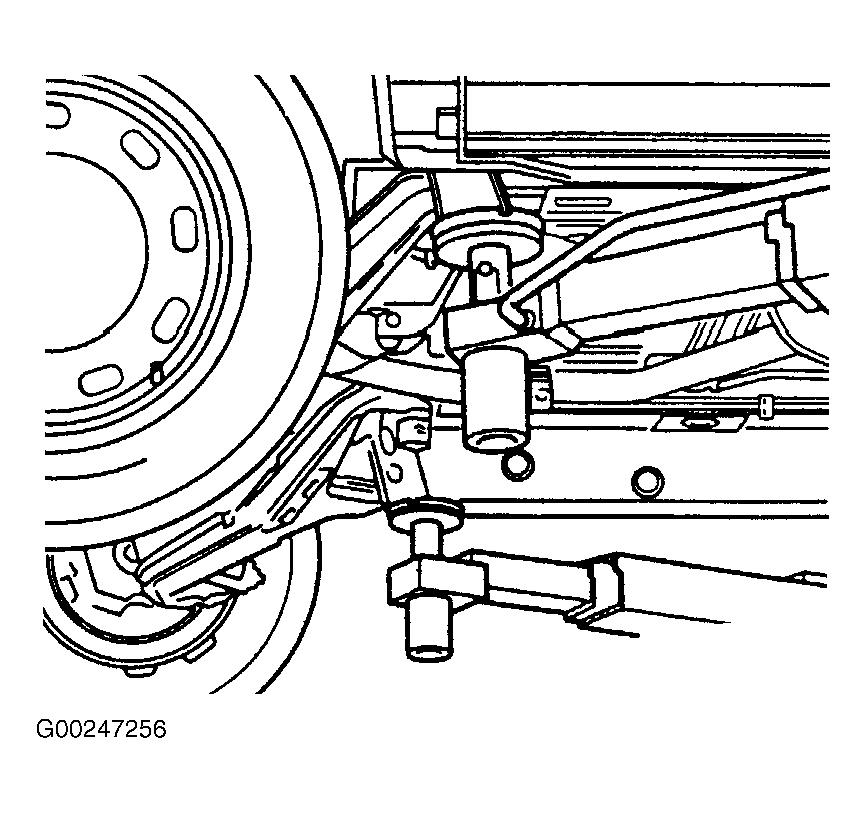

Fig 2: Floor Jack Lifting Point (Rear Of Vehicle)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
