GFF Diagnosis Log Tip (TT 00-10-02)

Publication date: 2010-01-29
Reference number: TT 00-10-02

GFF DIAGNOSIS LOG TIP

TECH TIPS

Reference Number(s): TT 00-10-02, Date of Issue: January 29, 2010

VOLKSWAGEN:	All Models
GROUP:	00 - General

All Models - GFF Diagnosis Log Tip

Review the example below for an explanation of some key points found on a diagnosis log.

This information may also be requested by the Technician's Helpline if a VTA ticket is created and called in.

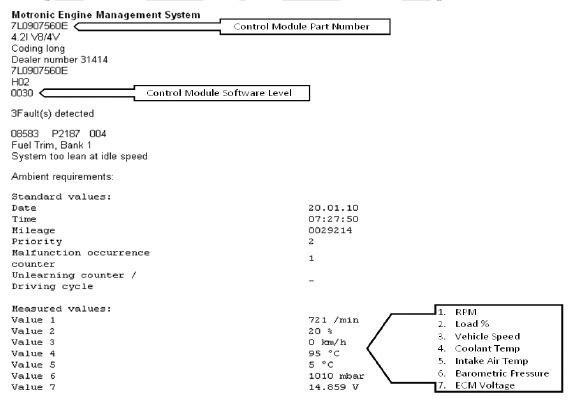

Fig 1: Diagnosis Log Example
