DATA LINK CONNECTOR (DLC) PIN ASSIGNMENT

TECH TIPS

Reference Number(s): TT 97-12-02, Date of Issue: August 17, 2012

VOLKSWAGEN:	All 1996 and Newer Vehicles
GROUP:	97 - Wiring

SERVICE INFORMATION

All 1996 and Newer Vehicles - Data Link Connector (DLC) Pin Assignment

Below is a generic pin assignment for the Data Link connector. Some vehicles may be missing pins or have additional pins, so it is recommended to check the wiring diagram for the vehicle you are working on for specific information.

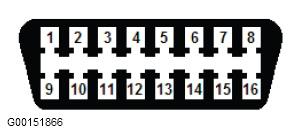

Fig 1: Data Link Connector Pins

Pin Assignments:

1 - Terminal 15 Power (not present in all vehicles)
4 - Ground
5 - Ground
6 - Diagnostic CAN High (only present in vehicles with CAN bus)
7 - K-line
14 - Diagnostic CAN Low (only present in vehicles with CAN bus)
15 - L-line (not present in all vehicles)
16 - Terminal 30 Power
