Section 3 (Automatic A/C-Heater Systems): Description
WARNING: This page is about a different car, the 2003 Volkswagen EuroVan and 2002 Volkswagen EuroVan. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
To avoid injury from accidental air bag deployment, read and carefully follow all SERVICE PRECAUTIONS and DISABLING & ACTIVATING AIR BAG SYSTEM procedures in AIR BAG SYSTEM SAFETY article in GENERAL SERVICING.
CAUTION:
When battery is disconnected, radio will go into anti-theft protection mode. Obtain radio anti-theft protection code from owner prior to servicing vehicle.

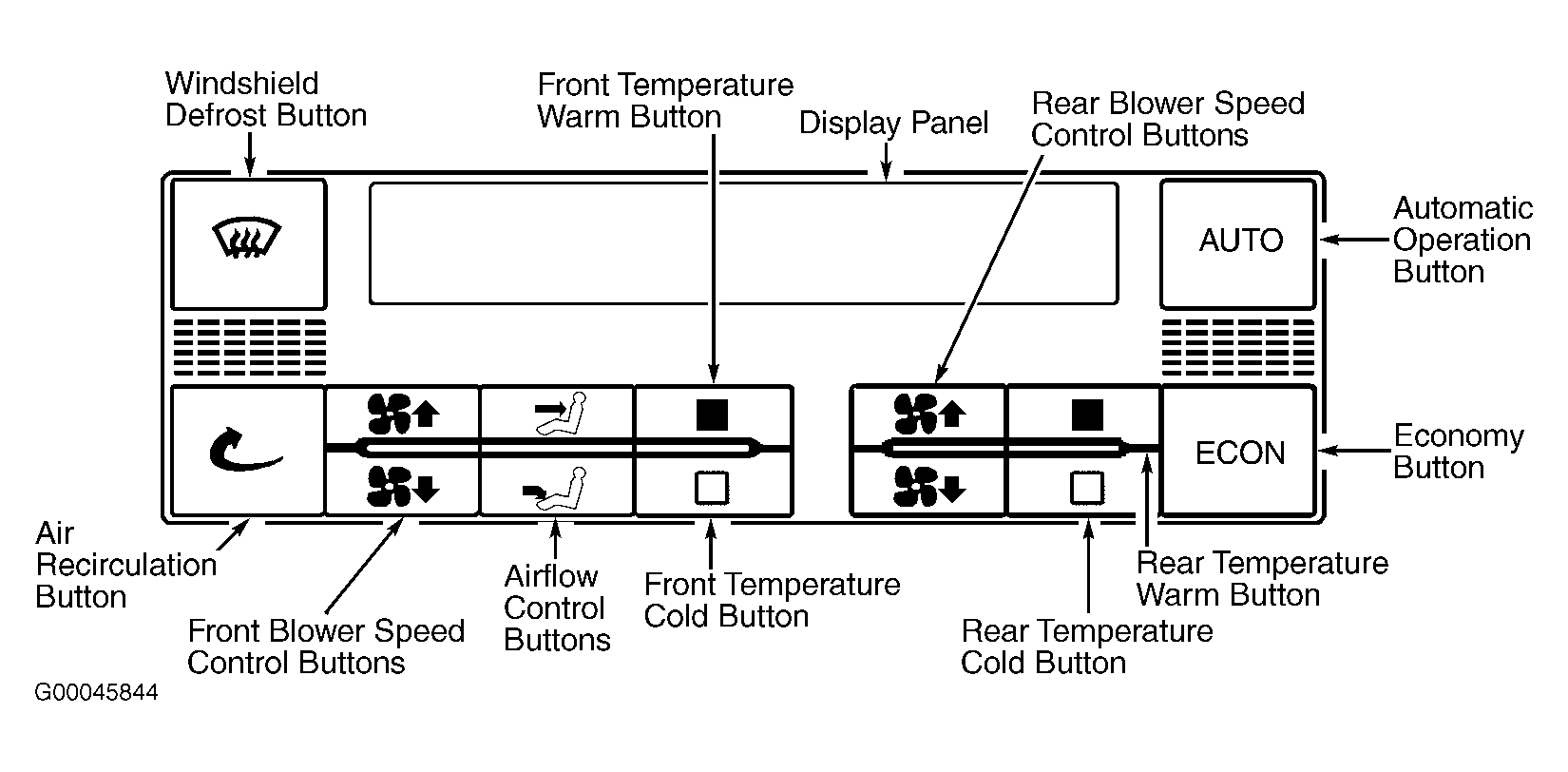

The air conditioning system is a cycling clutch type. System components include front evaporator, compressor, A/C pressure switch, expansion valve, receiver-drier, control panel and condenser. If vehicle is equipped with auxiliary (rear) heating and A/C, additional components include auxiliary evaporator and expansion valve. Control panel has 14 push buttons and a display window. See Fig 1 .
Automatic settings remain in memory after ignition is turned off and resume next time ignition is turned on. Manually selected settings such as fan speed and air distribution remain stored in memory for one hour after turning ignition off. After an hour or more, system will restart in automatic mode with previous automatic settings.
