Fuse Panel

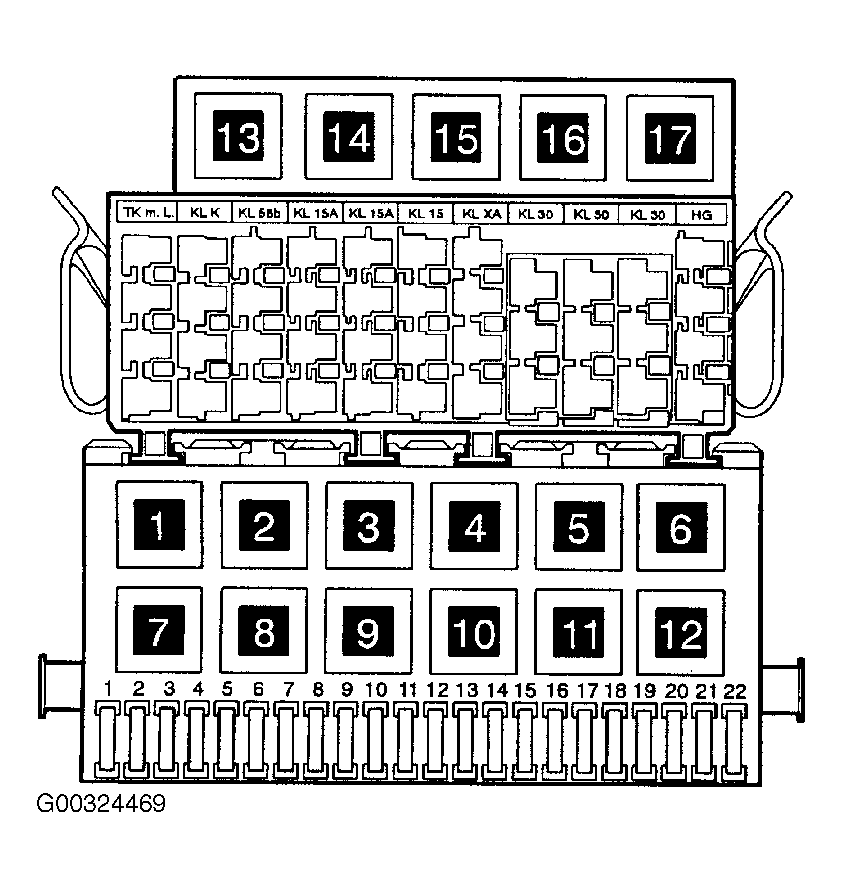

Fuse panel is located on relay panel. For fuse position number, amp rating and description of circuits protected, see FUSE IDENTIFICATION (FUSE PANEL) table. For positions on relay panel, see Figure .
FUSE IDENTIFICATION (FUSE PANEL)
| Fuse No. | Amp Rating | Circuit Protected |
|---|---|---|
| 1 | 10 | Headlight (Left) |
| 2 | 10 | Headlight (Right), Headlight Dimmer/Flasher Switch |
| 3 | 10 | License Plate Light |
| 4 | 15 | Rear Wiper Motor, Load Reduction Relay II, Rear Wiper Washer Relay |
| 5 | 15 | Wiper/Washer Intermittent Relay, Windshield Wiper Motor |
| 6 | 30 | Fresh Air Blower Switch, Climatronic Control Module, A/C Pressure Switch, Climatronic Fan Relay, Coolant Cut-Off Valve |
| 7 | 10 | Front Turn Signal Light (Right), Brake/Tail Light (Right), Parking Light (Right), Light Switch |
| 8 | 10 | Brake Light (Left), Rear Turn Signal Light (Left), High Mount Brake Light |
| 9 | N/A | Vacant |
| 10 | 10 | Headlight Switch |
| 11 | 10 | High Beam Indicator, Headlight (Left) |
| 12 | 10 | Headlight (Right), Power Sun Roof Control Module, Radio, Headlight Dimmer/Flasher Switch, Control Module W/Indicator |
| 13 | 10 | Dual Horns |
| 14 | 10 | Back Up Light Switch, Park/Neutral Position Relay, Power Windows Control Module, Programmable Timer W/Temperature Control, Outside Mirror Select Switch, Central Locking Control Module (Remote), Swivel Seat Lock Control Module, Sun Roof Switch, Interior Light W/Delay Switch, TCM, Shift Lock Solenoid, Dual Horns, Cruise Control Switch (M/T) |
| 15 | 10 | Coolant Circulation Pump Relay, PCV Heating Element |
| 16 | 15 | Glove Compartment Light, Emergency Flasher Switch, Climatronic Control Module |
| 17 | N/A | Vacant |
| 18 | 20 | Fuel Pump Relay, Fuel Injectors, Transfer Fuel Pump |
| 19 | 10 | After-Run Coolant Pump, Coolant Fan Control Thermal Switch |
| 20 | 10 | Brake Light Switch |
| 21 | 15 | Radio, DLC (Terminal 16), Interior Light W/Delay Switch, Control Module W/Indicator, Front Interior Light, Center Interior Light, Running Board Light, Passenger's Side Sun Roof Switch, Emergency Flasher Switch, Air Bag Indicator |
| 22 | 10 | Cigarette Lighter, Cigarette Lighter Light |
