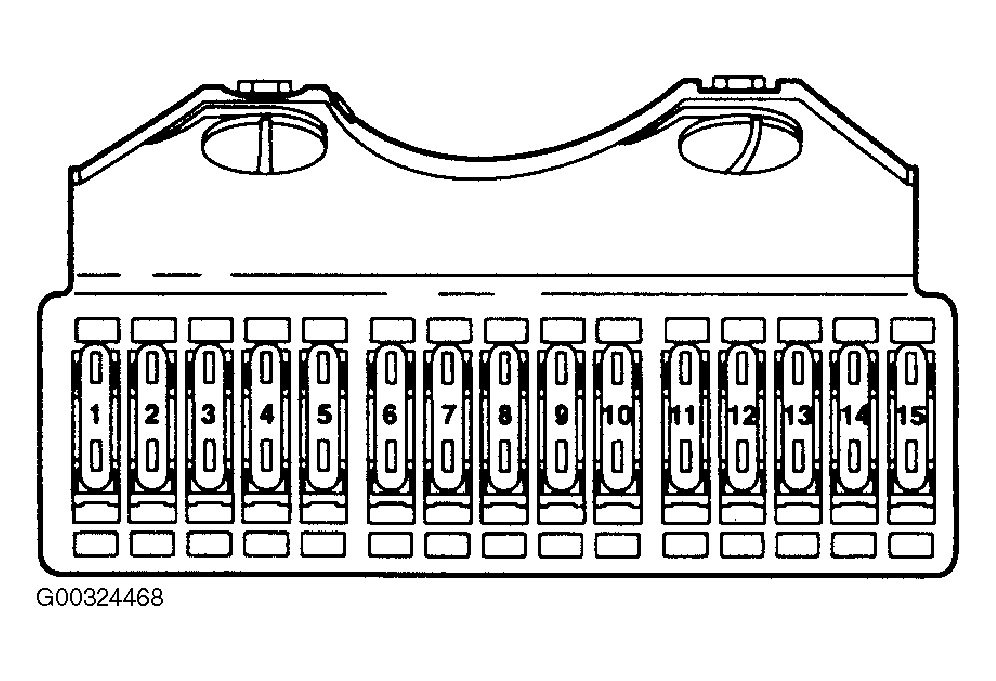

Fuse Holder Panel
Fuse holder panel is located behind trim panel on far left side of dashboard, below relay panel. For fuse position number, amp rating and description of circuits protected, see FUSE IDENTIFICATION (FUSE HOLDER PANEL) table. For positions on relay panel, see Fig 1 .
FUSE IDENTIFICATION (FUSE HOLDER PANEL)
| Fuse No. | Amp Rating | Circuit Protected |
|---|---|---|
| 1 | 15 | 12V Outlets |
| 2 | 10 | Swivel Seat Lock Control Module |
| 3 | 20 | Power Sun Roof Control Module, Interior Light W/Delay Switch |
| 4 | N/A | Vacant |
| 5 | 10 | ABS Control Module (W/EDL) |
| 6 | N/A | Vacant |
| 7 | N/A | Vacant |
| 8 | N/A | Vacant |
| 9 | N/A | Vacant |
| 10 | 15 | Driver's & Passenger's Door Central Locking System Switch, Central Locking Control Module |
| 11 | 15 | Driver's & Passenger's Seat Control Module, Load Reduction Relay II |
| 12 | 30 | Rear Window Defogger Switch, Rear Window Defogger Switch Light |
| 13 | 30 | Fan Relay |
| 14 | 30 | Climatronic A/C Relay |
| 15 | 30 | Emergency Flasher Switch, Climatronic Control Module, Heater Air Blower Relay, Climatronic Fan Relay |
NOTE:
Auxiliary fuse panel is located below driver's front seat.
FUSE IDENTIFICATION (AUXILIARY FUSE PANEL)
| Fuse No. | Amp Rating | Circuit Protected |
|---|---|---|
| 23 | 5 | Programmable Timer W/Temperature Control, Temperature Sensor Circuit Board, Blower Motor/Glow Plug Control Module |
| 66 | 25 | Heater Control Module (Auxiliary Heater) |
NOTE:
Auxiliary fuse holder is located above relay panel.
FUSE IDENTIFICATION (AUXILIARY FUSE HOLDER)
| Fuse No. | Amp Rating | Circuit Protected |
|---|---|---|
| 43 | 30 | Power Window Circuit Breaker |
| 102 | 15 | ECM, Speedometer Vehicle Speed Sensor, Ignition Coil |
| 117 | 15 | Secondary Air Injection Pump Relay, EVAP Canister Purge Regulator Valve, EGR Vacuum Regulator Solenoid Valve, Secondary Air Injection Solenoid Valve, MAF Sensor, Heated Oxygen Sensors 1 & 2, Leak Detection Pump, Fuel System Diagnostic Control Module |
