Fuse Bracket/Battery Panel

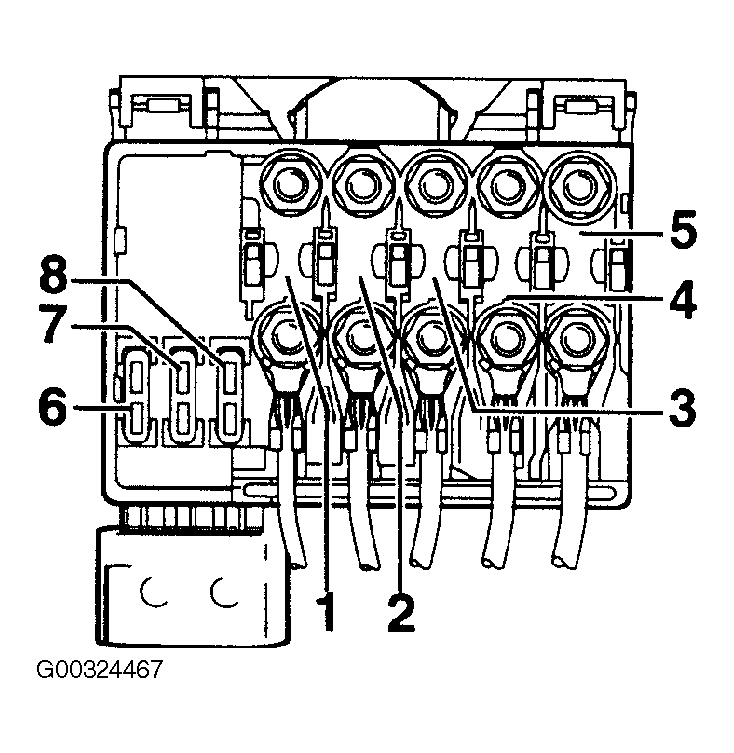

Fuse bracket/battery panel is located on battery cover. For fuse position number, amp rating and description of circuits protected, see FUSE IDENTIFICATION (FUSE BRACKET/BATTERY PANEL) table. For position locations, see Fig 1 .
FUSE IDENTIFICATION (FUSE BRACKET/BATTERY PANEL)
| Fuse No. | Amp Rating | Circuit Protected |
|---|---|---|
| 1 | 50 | Secondary Air Injection Pump Relay |
| 2 | 50 | Coolant Fan Control Relay, Series/Parallel Coolant Fan Control Relay |
| 3 | 50 | Coolant Fan Control Relay, Left Cooling Fan |
| 4 | 50 | ABS Control Module (W/EDL) |
| 5 | 150 | Generator |
| 6 | N/A | Vacant |
| 7 | N/A | Vacant |
| 8 | N/A | Vacant |
