Description & Operation

Volkswagen EuroVan is equipped with front axle shafts using constant velocity joints. See Fig 1 .

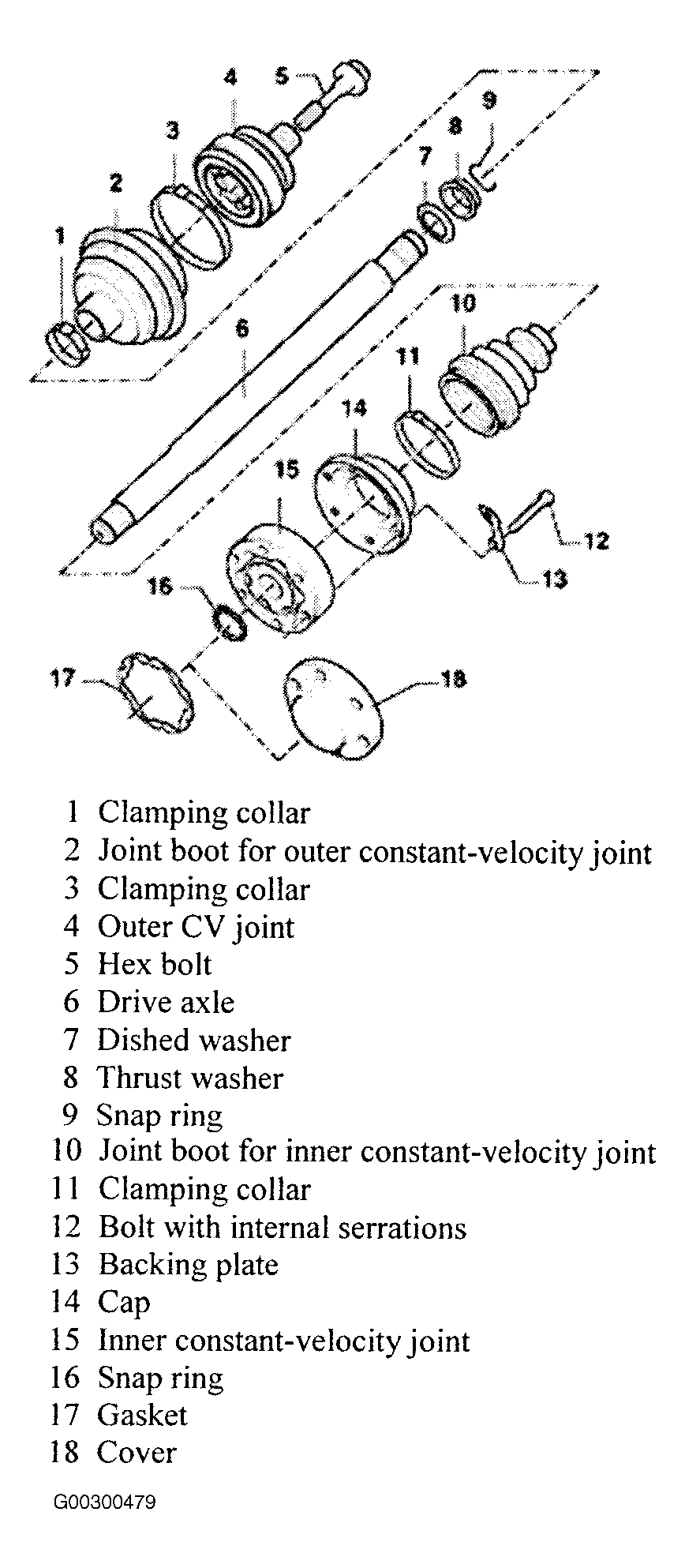

Fig 1: Exploded View Of Front Axle Shaft & CV Joints

Courtesy of VOLKSWAGEN UNITED STATES, INC.
