Component Locations

NOTE: For washer/wiper intermittent relay, headlight cleaning relay and rear window wiper/washer relay locations, see appropriate COMPONENT LOCATIONS article in ELECTRICAL.

COMPONENT LOCATIONS

Component	Location
Rear Wiper Blade	Fig 1 On Outside Of Rear Window
Rear Wiper Motor	Fig 1 Attached To Rear Window
Washer Fluid Reservoir	Fig 2 Right Side Of Engine Compartment
Windshield Washer Jets	Fig 2 On Cowl Panel
Windshield Wiper Blades	Fig 3 On Outside Of Windshield
Windshield Wiper Motor	Fig 3 Attached To Frame

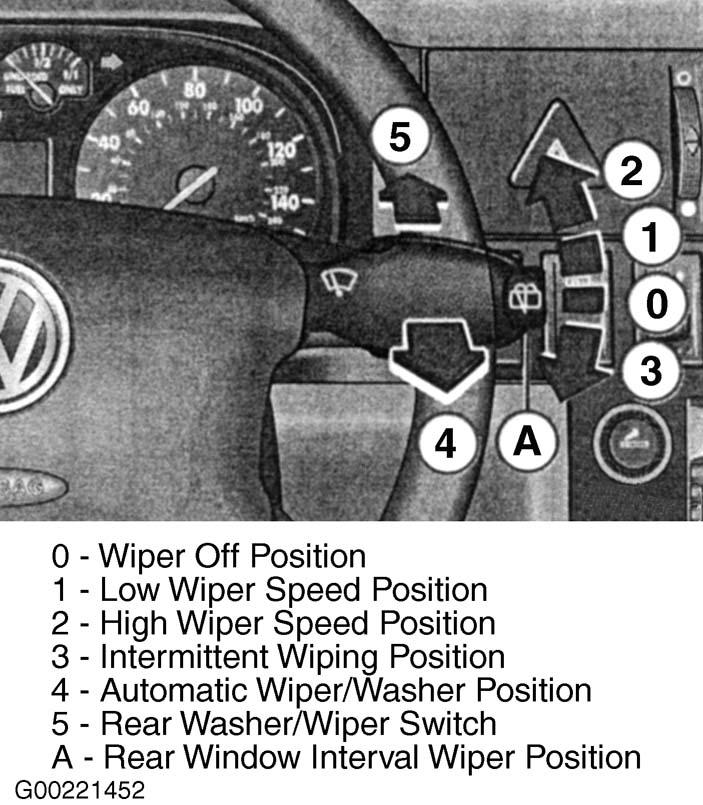

Wiper/Washer System Switch	Figure Right Side Of Steering Column

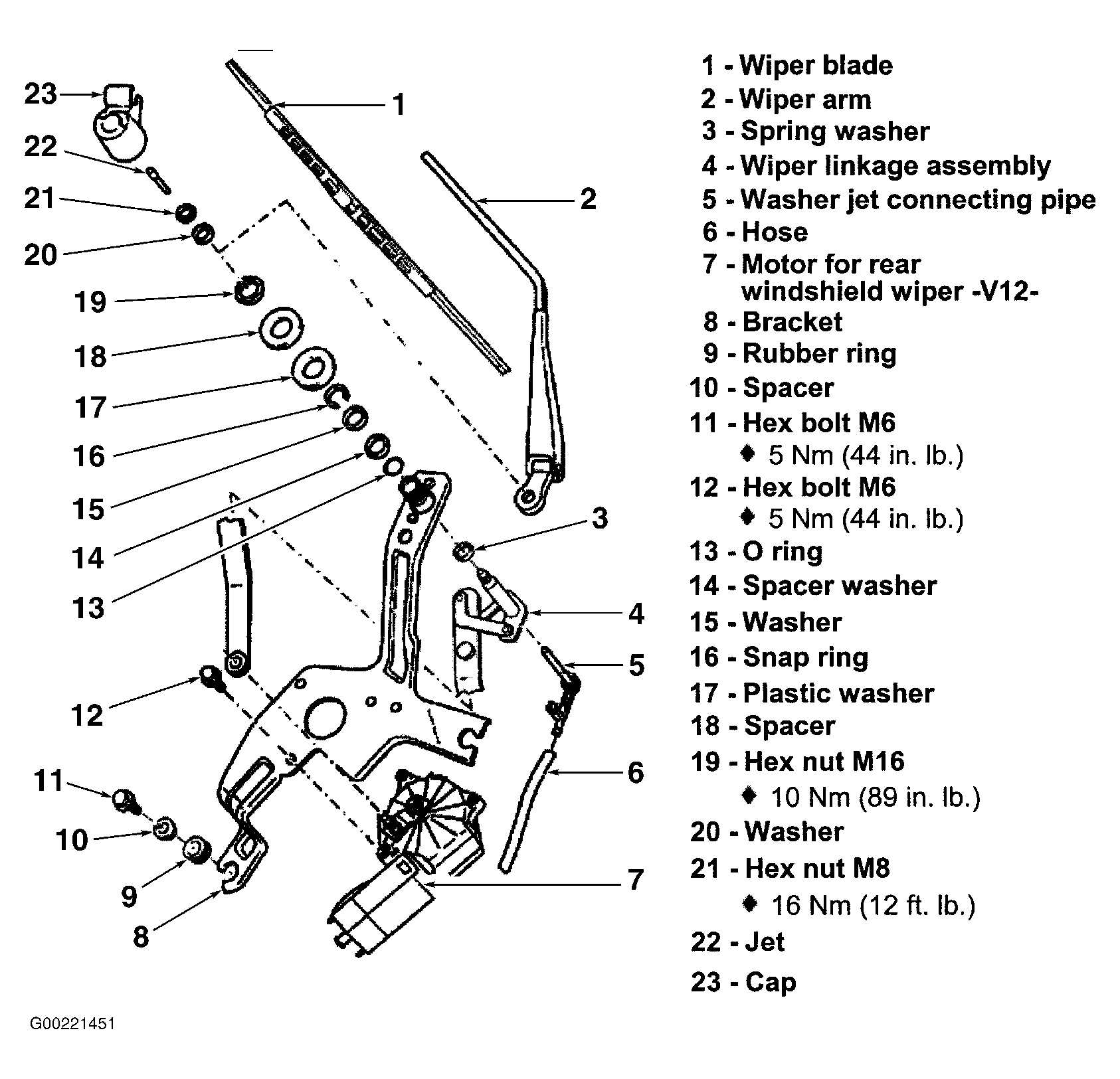

Fig 1: Locating Rear Window Wiper System Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

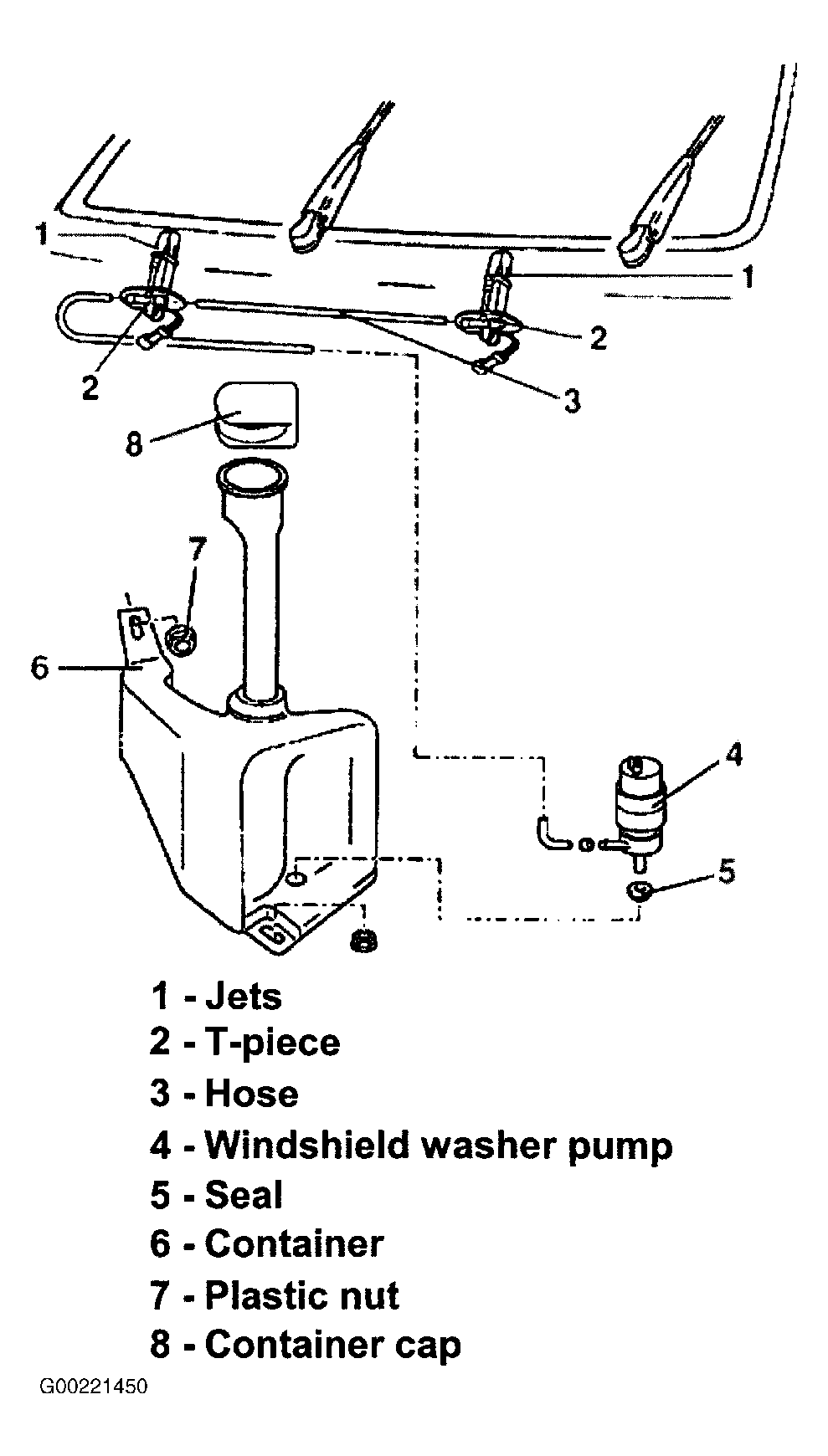

Fig 2: Locating Windshield Washer System Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

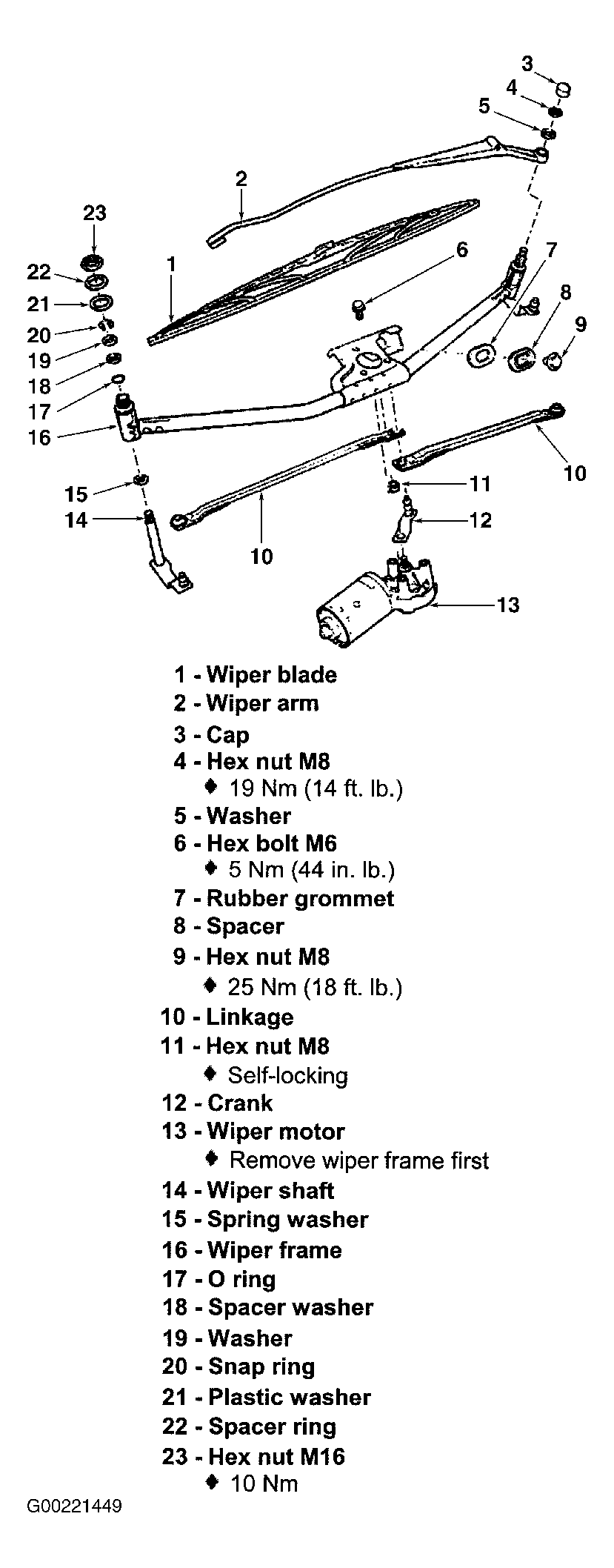

Fig 3: Locating Windshield Wiper Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.
