Servo Rod: EuroVan

Turn adjusting sleeve to unlock sleeve. Hold accelerator pedal in idle position. Pull adjusting sleeve and servo rod in direction of arrow until resistance is felt. See Fig 1 . Turn adjusting sleeve to lock sleeve. Ensure accelerator pedal moves freely.

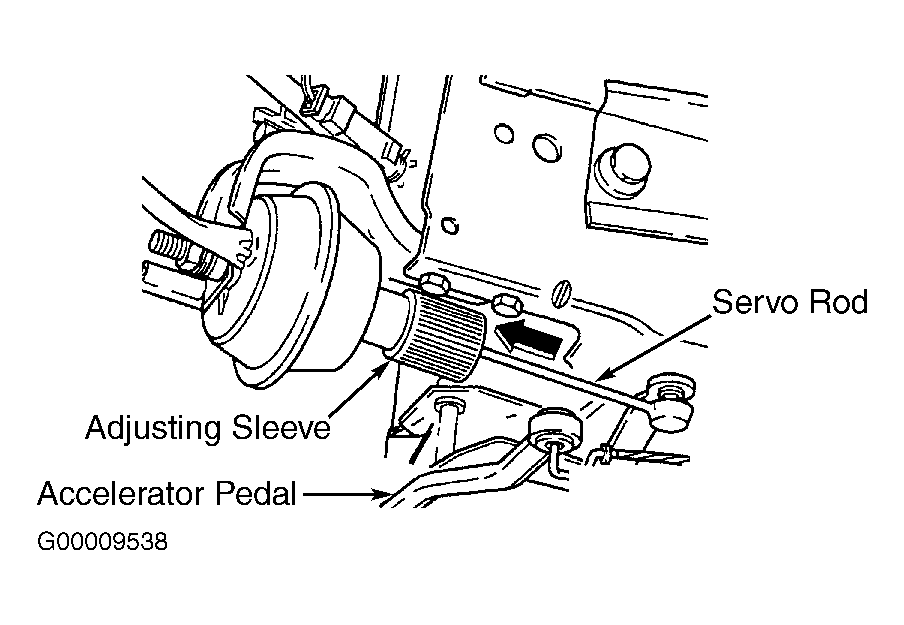

Fig 1: Adjusting Accelerator Pedal Positioning Element Servo Rod (EuroVan)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
