Side window height adjustment

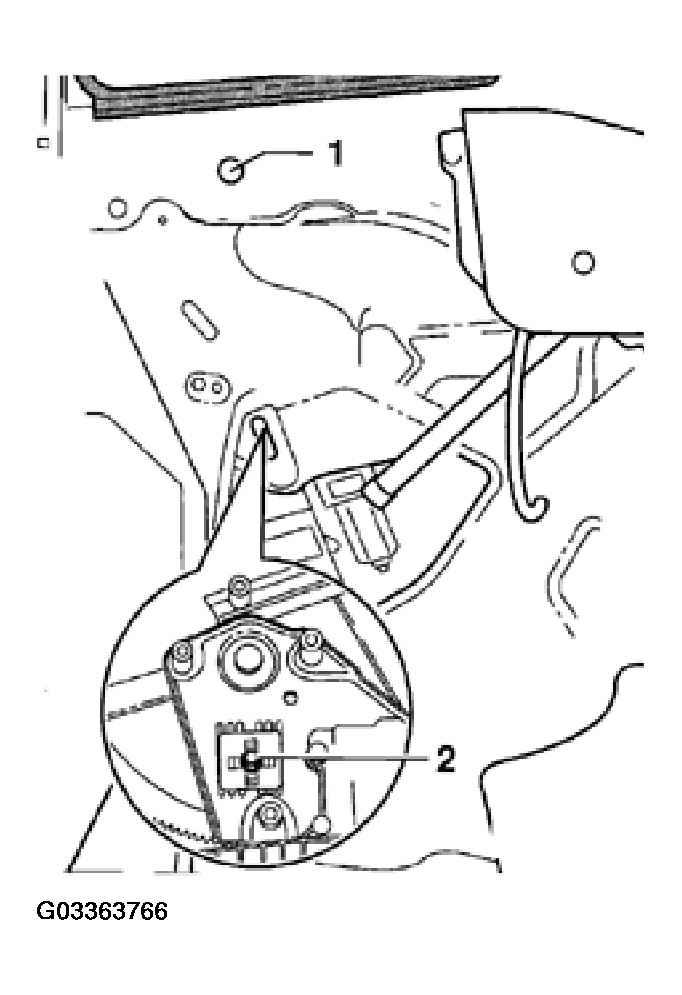

- Loosen height stop bolt -1-.
- Loosen window regulator height stop bolt -2-.
Courtesy of VOLKSWAGEN OF AMERICA, INC.
- Raise side window.

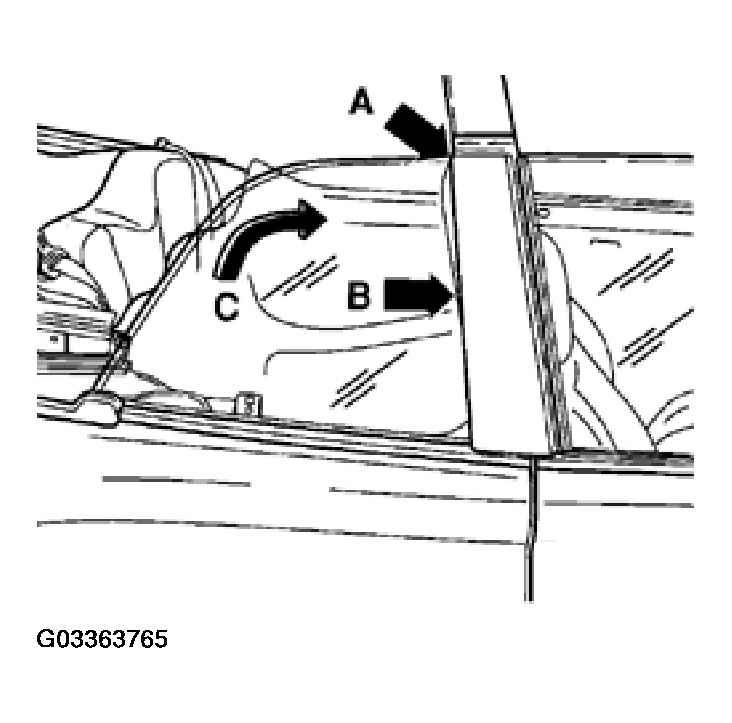

- Adjust side window to side window seal upper edge -arrow A -.
Courtesy of VOLKSWAGEN OF AMERICA, INC.
- Tighten bolt -2-.
- Tightening torque: 10 N.m (0.393 in.)
- Tighten height stop bolt -1-. See Fig 3
.
- Slide height stop -1- down against the side window and tighten bolt.
- Tightening torque: 10 N.m (0.393 in.)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
