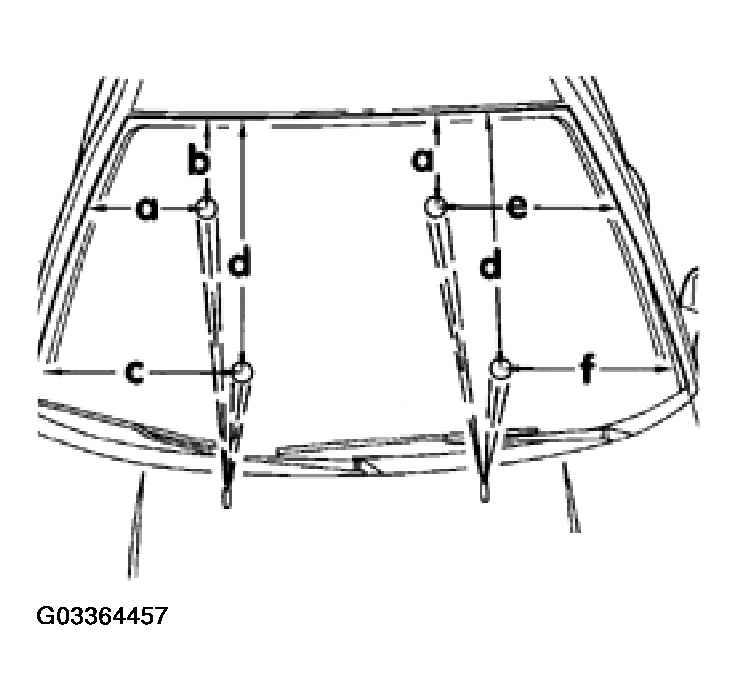

Windshield washer jets, adjusting: Windshield:

a = 280 mm (11.03 in.) d = 560 mm (22.05 in.)

b = 300 mm (11.81 in.) e = 400 mm (15.75 in.)

c = 430 mm (16.93 in.) f = 400 mm (15.75 in.)

Tolerance +/- 20 mm (0.79 in.)

Fig 1: Adjusting Windshield Washer Jets

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Rear window:

Spray jet in middle of swept area

• Fill reservoir for windshield cleaning system.
• Always add a windshield cleaner to the water (antifreeze in winter).
