Brake fluid, changing
WARNING:
- Use only new brake fluid conforming to US Standard FMVSS 116 DOT 4. Genuine VW/Audi brake fluid conforms to this specification.
- Brake fluid is poisonous. Do not ingest brake fluid. Wash thoroughly with soap and water if brake fluid comes into contact with skin.
CAUTION:
- Do not let brake fluid come into contact with paintwork because of its caustic effect.
- Brake fluid absorbs moisture from the surrounding air and should always be stored in airtight containers.

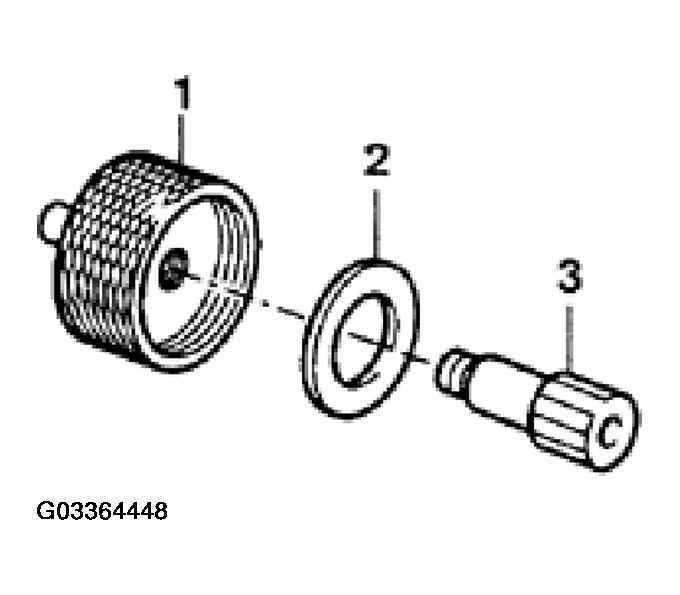

- Connect brake filling and bleeding tool VW 1238, VAG 1238/1 or VAG 1238/B to brake reservoir. Use adapter -1-, with seal -2- and connector -3-.
- Draw off as much brake fluid as possible from the reservoir.
- Insert brake pedal depressor between drivers seat and brake pedal and tension.
- Open bleeder screws and allow the appropriate quantity of brake fluid to drain out. The used brake fluid is forced out of the system by pumping in fresh fluid.
BRAKE BLEEDING SEQUENCE & FLUID QUANTITY
| Sequence: Wheel cylinder, brake calipers | Quantity of brake fluid that must flow out of brake cylinder or brake calipers: |
|---|---|
| rear right | 0.4-0.5 liters (0.42-0.53 qt.) |
| rear left | 0.4-0.5 liters (0.42-0.53 qt.) |
| front right | 0.4-0.5 liters (0.42-0.53 qt.) |
| front left | 0.4-0.5 liters (0.42-0.53 qt.) |
Total quantity: 2 liters (2.1 quarts)
- Remove brake filling and bleeding tool from brake fluid reservoir and remove brake pedal depressor.
- Check pedal pressure and idle travel at brake pedal.
Idle travel: max. 1/3 of pedal travel.
