Measuring value blocks, display groups 80 to 100 (readiness code), evaluating: Notes

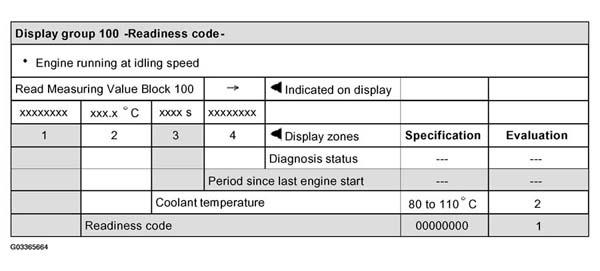

Fig 1: Identifying Display Group 100 - Readiness Code

Courtesy of VOLKSWAGEN OF AMERICA, INC.

• For Evaluation 1 in Fig 1, see 8 DIGIT NUMBER BLOCK FOR READINESS CODE SIGNIFICANCE .
• For Evaluation 2 in Fig 1, see EVALUATING DISPLAY GROUP 4, DISPLAY ZONE 3 - COOLANT TEMPERATURE .
