Fuse/relay panel, removing and installing: Notes
CAUTION:
Before working on the electrical system:
- Obtain radio anti-theft code.
- Ignition OFF !
- Disconnect battery Ground (GND) strap.
NOTE:
- After reconnecting battery:
- Activate vehicle equipment such as radio, clock and power windows as per Repair Manual and/or Owner's Manual.
- On vehicles with OBD II, activate readiness code
See appropriate ON BOARD DIAGNOSTIC (OBD) article.
- The fuse/relay panel is located under the left side of the instrument panel.
- Remove lower instrument panel trim.
See INSTRUMENT TRIM, REMOVING ..

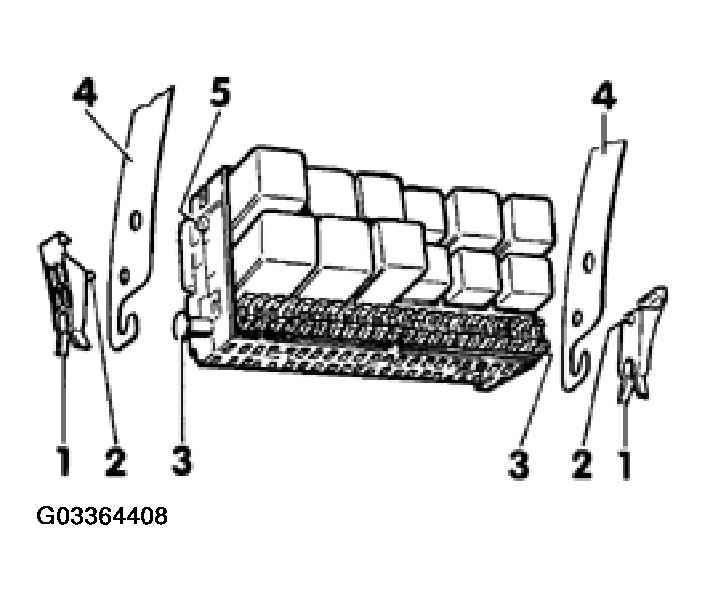

- Spread retaining clips -1- and disengage lock pins -2- from brackets -4-.
- Swing retaining clips -1- forward and pull from fuse/relay panel pins -3-.
- Spread left retaining bracket -4- and disengage from pin -5-.
- Lift fuse/relay panel from brackets -4-.
- Remove multi-point connectors from back of fuse/relay panel and remove fuse/relay panel.
- Install in reverse order of removal. Make sure pin -5- and retaining pins -2- engage recesses in brackets -4-.
