Battery, assembly
NOTE:
- Refer to warnings and safety measures. Refer to WARNINGS AND SAFETY MEASURES FOR HANDLING LEAD -ACID BATTERIES
- Refer to battery handling instructions. Refer to BATTERY HANDLING INSTRUCTIONS
NOTE:

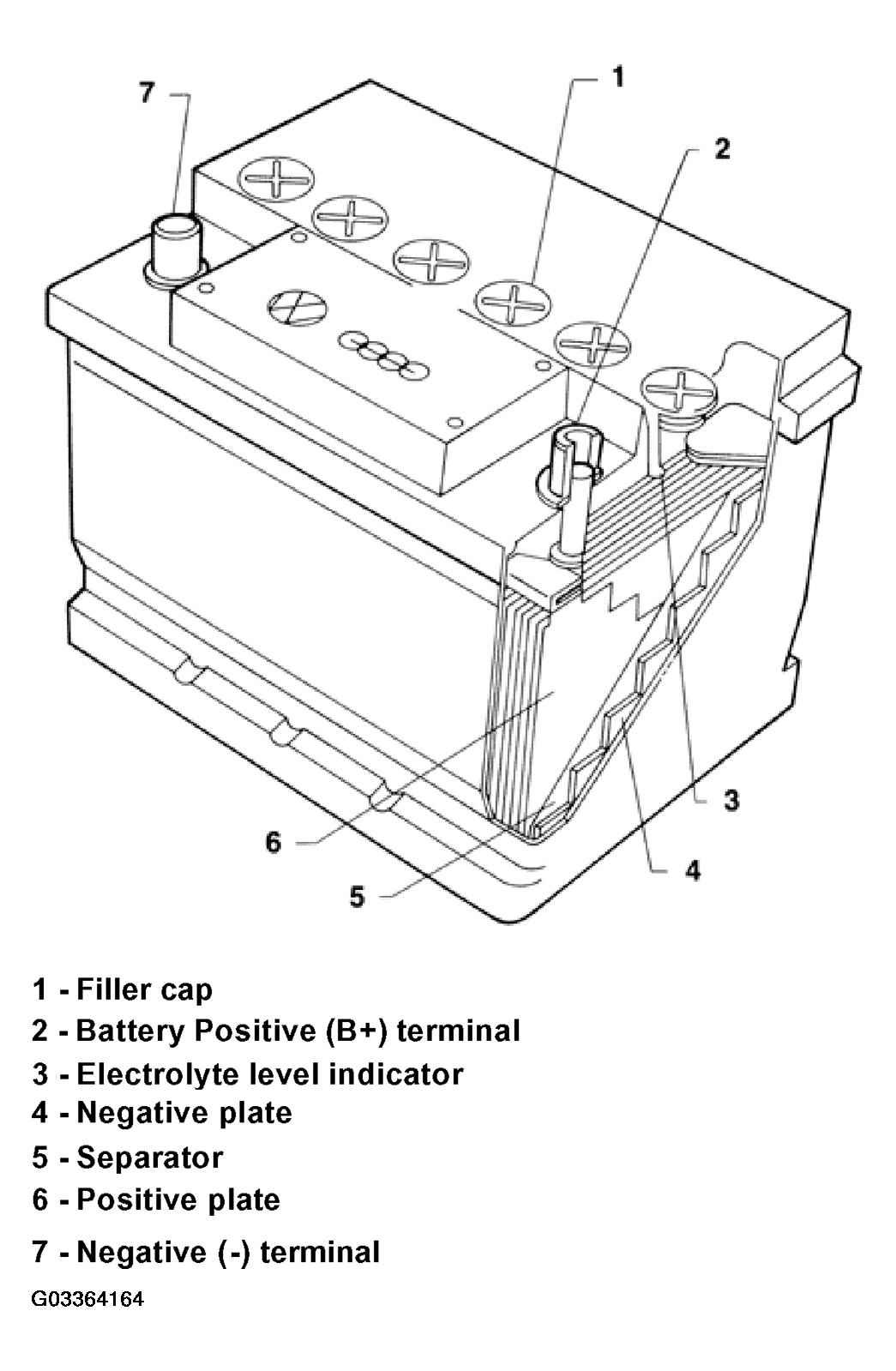

The following list refers to items in Fig 1.
- - Filler cap
- - Battery Positive (B+) terminal
- Larger diameter than negative (-) terminal
- Clean off any oxidation
- - Electrolyte level indicator
- Checking electrolyte level. Refer to ELECTROLYTE LEVEL, CHECKING
- - Negative plate
- Color: metallic gray
- - Separator
- Insulator
- - Positive plate
- Color: dark brown
- - Negative (-) terminal
- Smaller diameter than positive (B+) terminal
- Clean off any oxidation
