Water deflector, removing

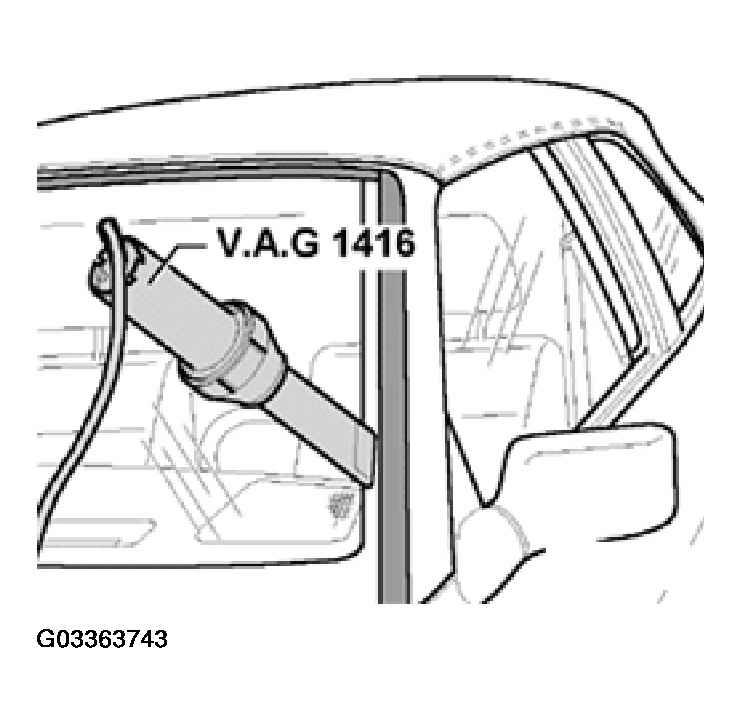

- Remove deflector, heat strip with a hot air blower to aid removal.
Courtesy of VOLKSWAGEN OF AMERICA, INC.
- Set back eccentric (turn counterclockwise to loosen).
- Loosen sealing lip from window flange with plastic wedge and spray in cleaning solution D 009 401 04 (as substitute for lubricant).
- Place cutting thread in window flange with help of tube -3- (cutting wire may also be used).

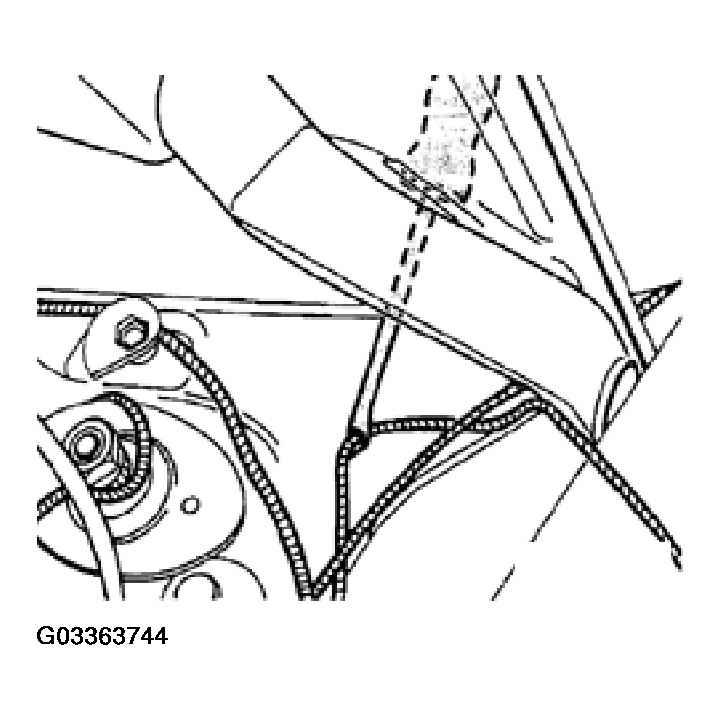

- Pull cutting thread through adhesive sealing material into inside of vehicle with awl (from VAG 1474). Cutting thread is doubled up to windshield wiper shaft.
Courtesy of VOLKSWAGEN OF AMERICA, INC.
- Secure outer end of thread to windshield wiper shaft.
- Secure inner end of thread to winding device.

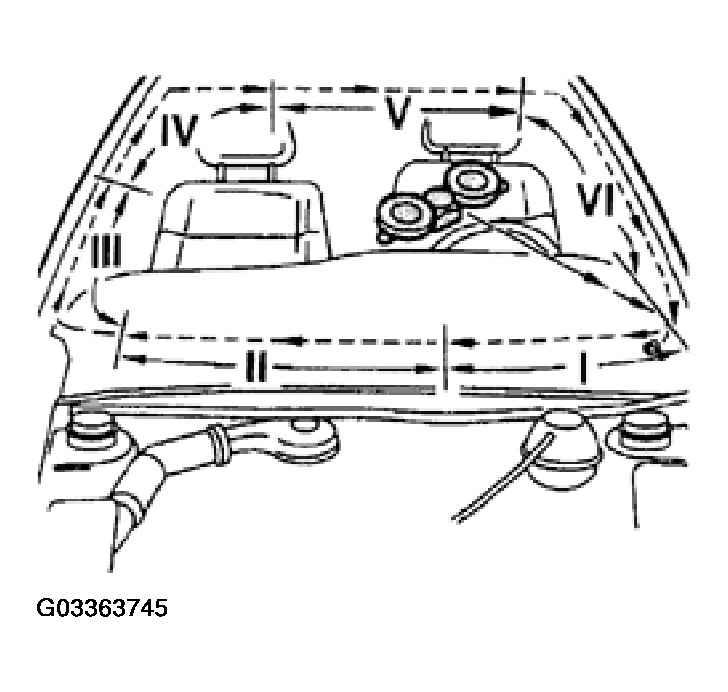

- Place winding device VAG 1654 in "Position I".
Courtesy of VOLKSWAGEN OF AMERICA, INC.
- Move winding device according to position required and cut out windshield glass.
- Press cutting thread against window glass with plastic wedge during cutting process, in order to have clearance at window flange and instrument panel.
