Windshield frame seal, removing and installing: Notes
- Pry out interior light with screwdriver.
- Disconnect connectors.
Courtesy of VOLKSWAGEN OF AMERICA, INC.

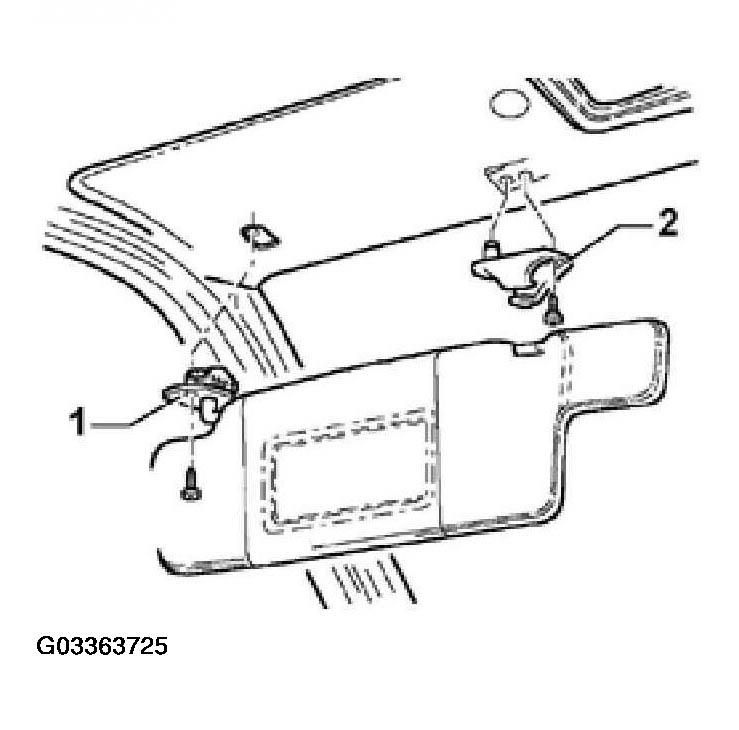

- Remove sun visor -1- and sun visor retainer -2-.
- Turn sun visor retainer -2- 90° and pull off.
Courtesy of VOLKSWAGEN OF AMERICA, INC.
- Disconnect connections if equipped.
- Remove windshield trim.

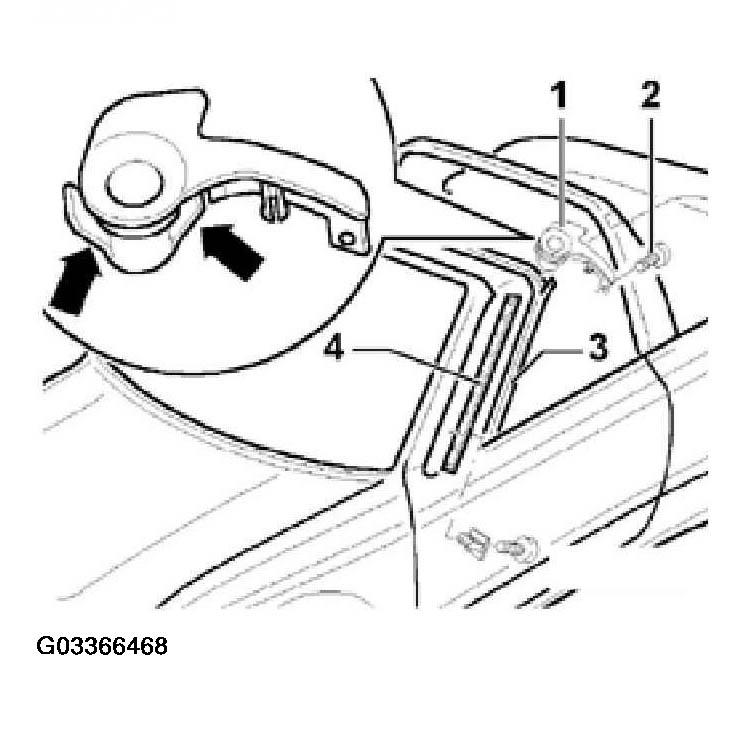

- Remove screws -2-, press mount -1- locking tabs -arrows- together and remove mount -1-.
- Pull windshield seal -3- out from retainer -4- (in upper area of windshield Butyl tape is installed under seal).
Courtesy of VOLKSWAGEN OF AMERICA, INC.
