Wind break, retrofitting: Notes

Remove lower socket head screw -1- (M6 x 12) for rear seat.

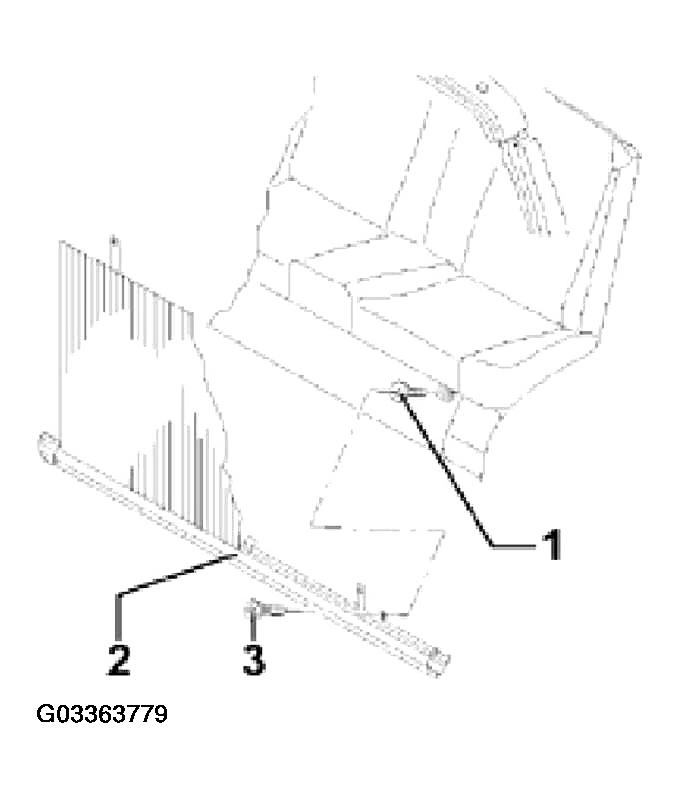

Fig 1: Lower Socket Head Screw -1- (M6 X 12) For Rear Seat
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Install wind break -2- on top of seat retaining brackets and secure with socket head bolts -3- (M6 x 20).
- Tightening torque: 8 N.m (70 in. lb).
Mark dimension -a- (a = 157 mm, 6.18 in.) with tape measure -center - on roll bar. See Fig 2 .

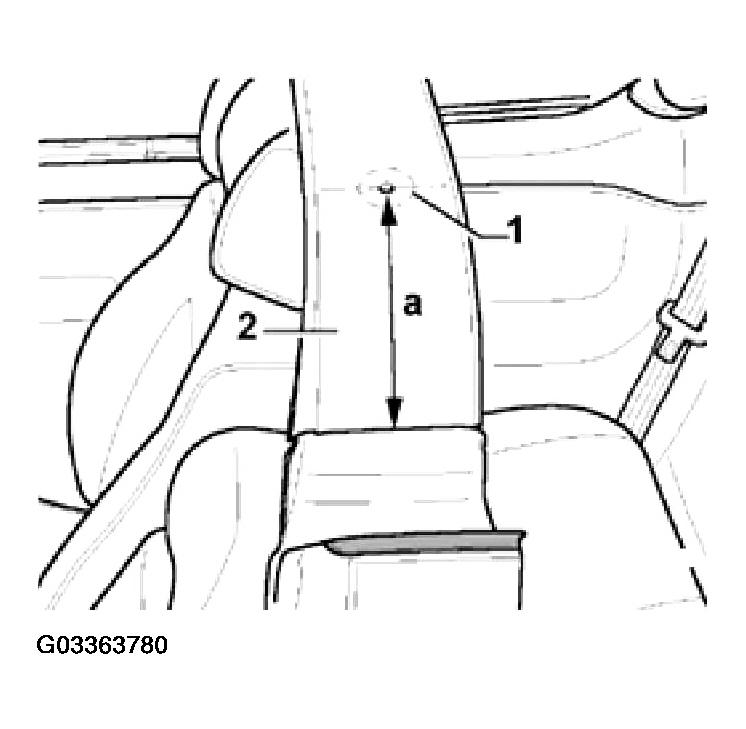

Fig 2: Identifying Dimension On Roll Bar
Courtesy of VOLKSWAGEN OF AMERICA, INC.
