Wind break: Notes

NOTE: The following list refers to items in Fig 1 .
  1. - Wind break
  2. - Rivet
  3. - Press stud fixed part
  4. - Rear seat retaining bracket
  5. - Screw
    • 8 N.m (70 in. lb)

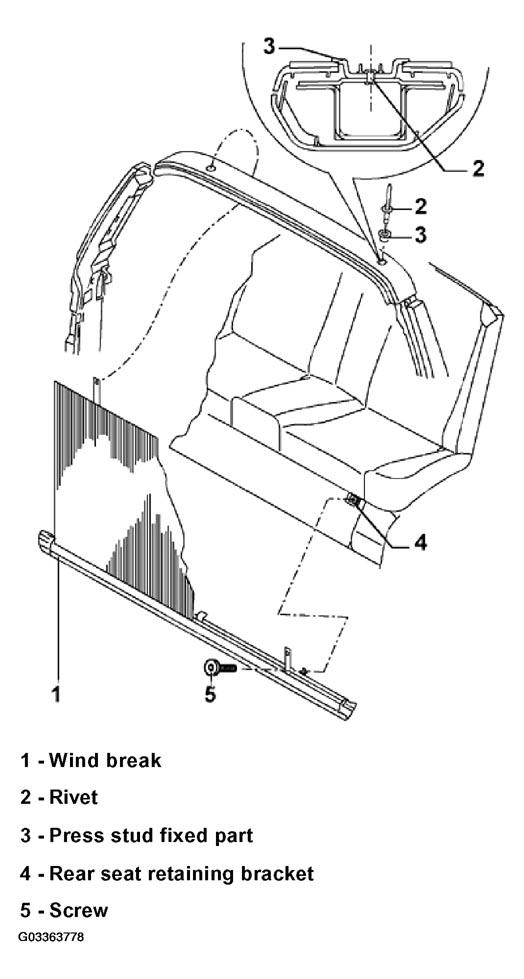

Fig 1: Identifying Wind Break Components
G03363778Courtesy of VOLKSWAGEN OF AMERICA, INC.
