Window regulator, removing and installing

Front door trim panel removed and insulating film loosened.

• Pull inside window slot seal off flange.
• Lower window and remove window screws.
• Pull window up, tilt toward front and lift out of window slot.

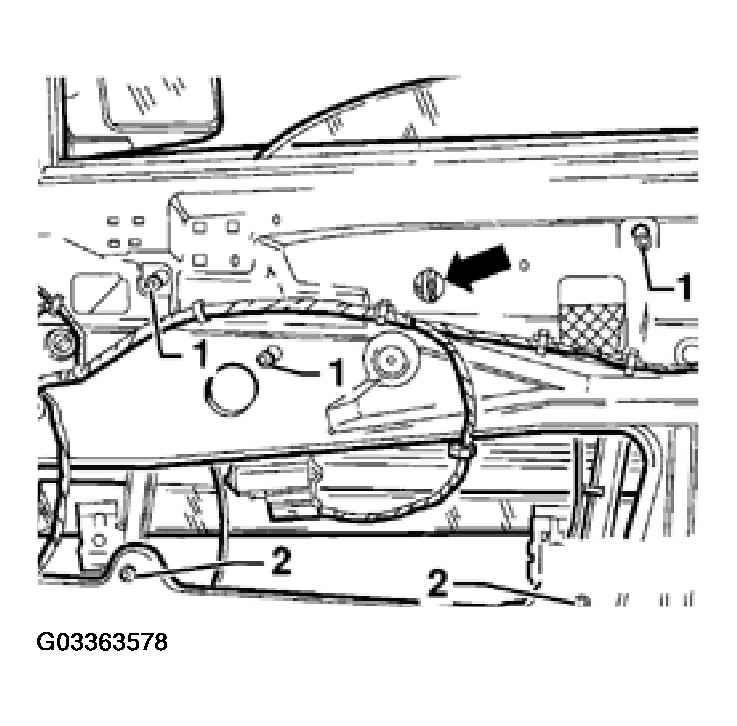

• Unclip cable clip -arrow-.
• Loosen screws -1- and remove screws -2- 10 N.m (0.393 in.).
• Raise window regulator slightly so screws -1- can be pulled through installation openings.
  Fig 1: Raising Window Regulator Slightly So Screws Can Be Pulled Through Installation Openings

  Courtesy of VOLKSWAGEN OF AMERICA, INC.
• Pull window regulator out downward through installation opening.

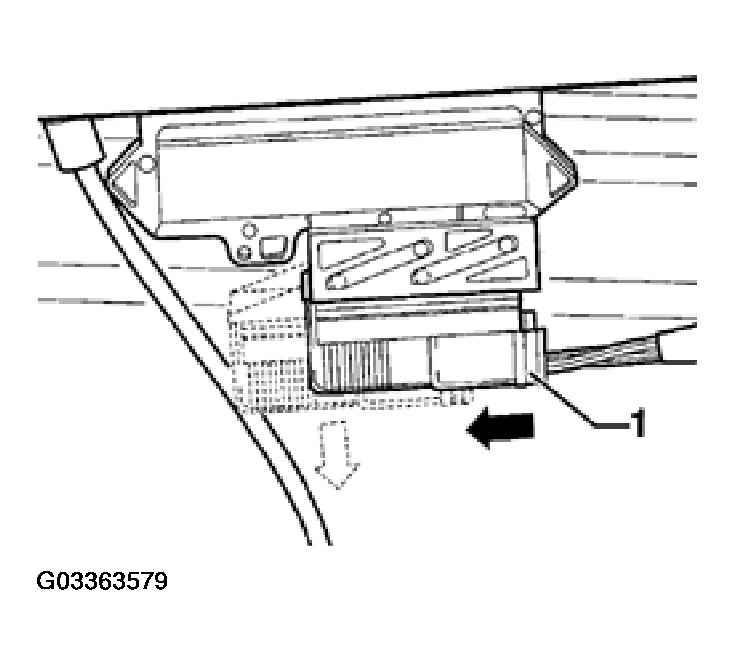

• On electric window regulator, slide connector -1- in direction of arrow and remove.
Fig 2: Identifying Electric Window Regulator And Connector
Courtesy of VOLKSWAGEN OF AMERICA, INC.
