Maintaining common key locking

Common key locking can be maintained by repositioning or attaching locking plates -5-.

1; 2; 3; and 4 - possible lock plate sizes.

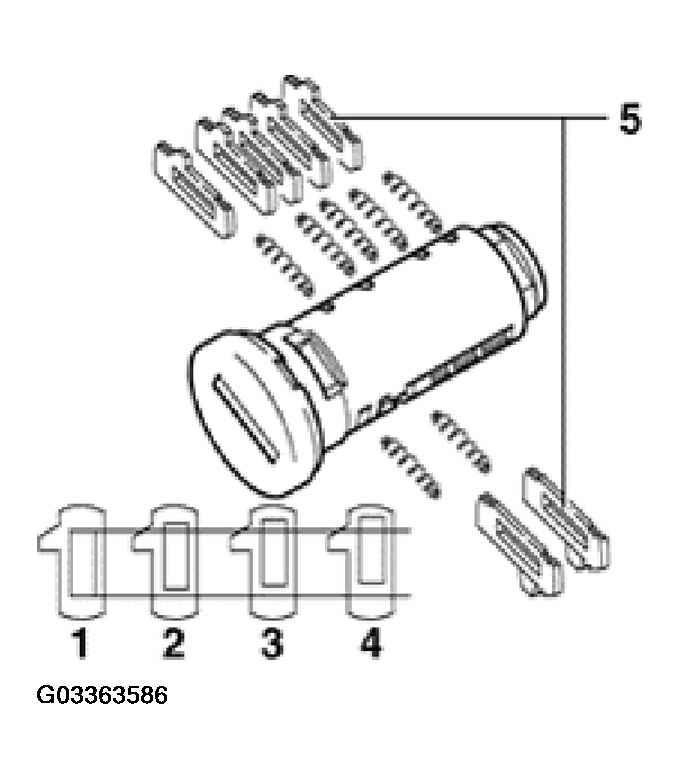

Fig 1: Identifying Common Key Lock Plate Sizes

Courtesy of VOLKSWAGEN OF AMERICA, INC.
