Door lock, removing and installing: Notes

Door window must be closed.

• Remove door handle.
• Remove front door trim panel and carefully pull off insulation film in rear area.
• Remove Torx(R) screws -1- and disconnect pull rod, 8 N.m (70 in. lb).

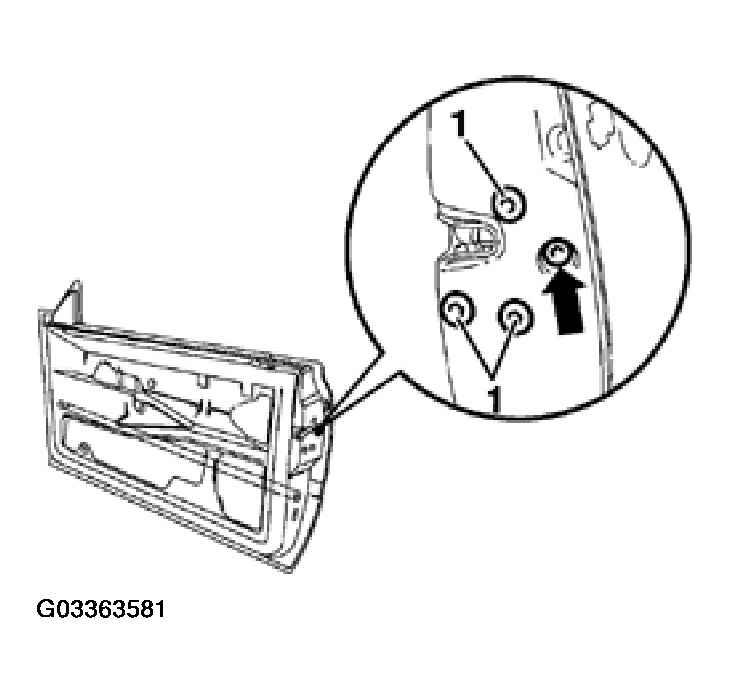

Fig 1: Identifying Door Latch Torx Screws
Courtesy of VOLKSWAGEN OF AMERICA, INC.
