Work step 4: Temperature check

Indicated on display

Fig 1: Scan Tool Display - Work Step 4: Temperature Check (Rapid Data Transfer)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

• Press buttons 0 and 8 to select "Read measuring value block" function 08. Press -Q- button to confirm input.

Indicated on display

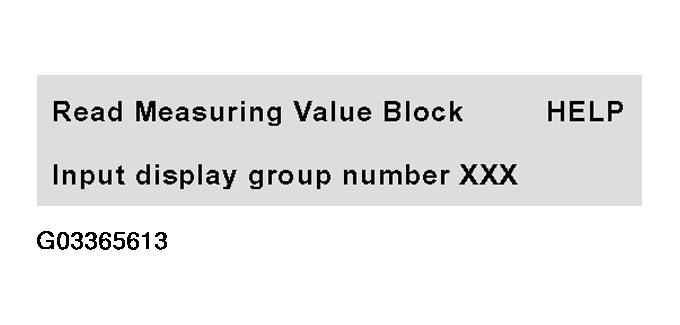

Fig 2: Scan Tool Display - Work Step 4: Temperature Check (Read Measuring Value Block)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

• Press buttons 0, 0 and 4 to select "Display group number 4". Press -Q- button to confirm input.

Indicated on display (1-4 = display fields)

Fig 3: Scan Tool Display - Work Step 4: Temperature Check (Read Measuring Value Block 4)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

• Read coolant temperature value in display field 3.

  Specification: 5 to 90° C

• Read Intake Air Temperature (IAT) value in display field 4.

Specification: maximum 60° C

If indications resemble description:

• Start engine and run at idle.

• Press --> key.
