Display group 6 -Basic function-

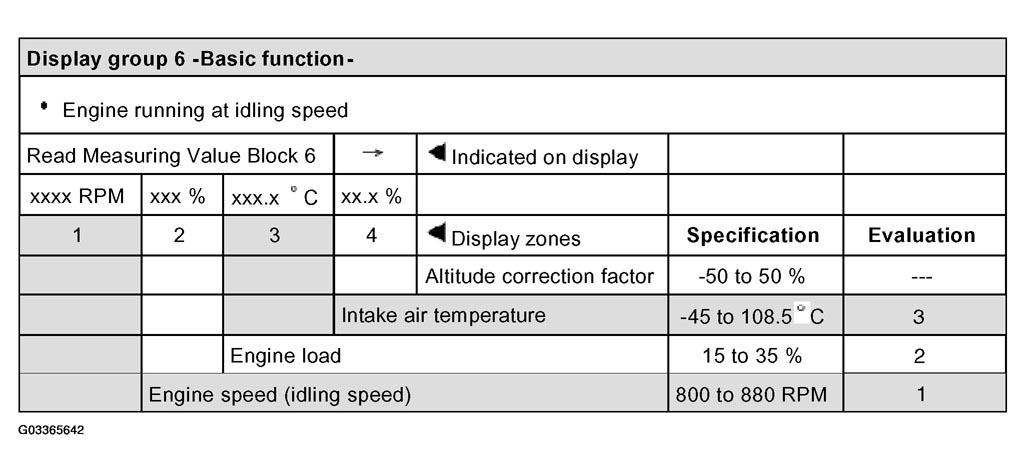

Fig 1: Identifying Display Group 6 - Basic Functions

Courtesy of VOLKSWAGEN OF AMERICA, INC.

• For Evaluation 1 in Fig 1, see EVALUATING DISPLAY GROUP 1, DISPLAY ZONE 1 - ENGINE SPEED (IDLING SPEED) .
• For 2, see EVALUATING DISPLAY GROUP 10, DISPLAY ZONE 2 - ENGINE LOAD .
• For 3, see EVALUATING DISPLAY GROUP 4, DISPLAY ZONE 4 - INTAKE AIR TEMPERATURE .

Note on display zone 3:

The total temperature range is given as the specification. The displayed value must be above ambient temperature.
