Engine code

The engine code and engine number (serial number) are die-stamped on the front of the cylinder block above the crankcase breather.

In addition, an adhesive label on the drive belt cover lists the engine code and engine number.

The engine code is also listed on the vehicle identification sticker in the luggage compartment.

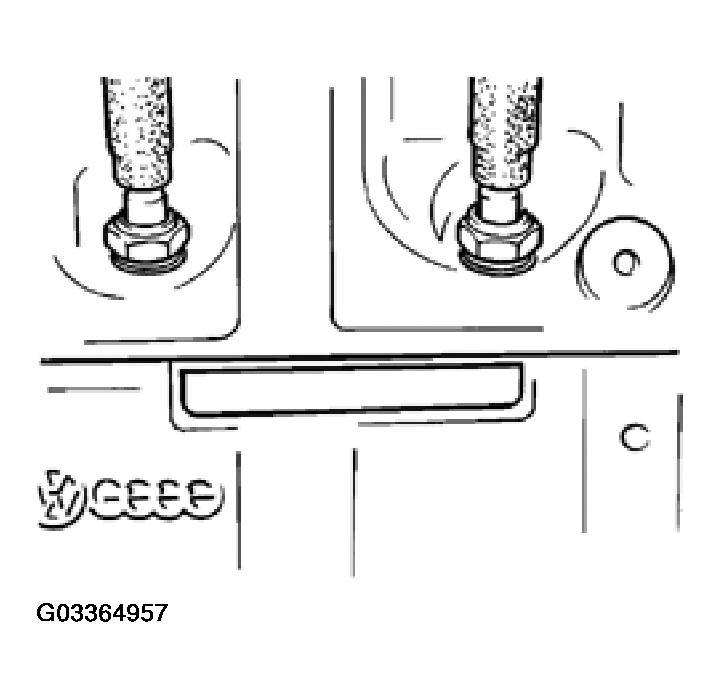

Fig 1: Locating Engine Code

Courtesy of VOLKSWAGEN OF AMERICA, INC.
