Key Adaptation And Part Number (TT 96-10-06)
Publication date: 2014-03-21Reference number: TT 96-10-06
KEY ADAPTATION AND PART NUMBER
TECH TIPS
Reference Number(s): TT 96-10-06, Date of Issue:
March 21, 2014
| VOLKSWAGEN: | 1999-2002 Cabrio |
| GROUP: | 96 - Lights, Switches - Interior, Anti-theft |
SERVICE INFORMATION
1999-2002 Cabrio with Immobilizer 2 - Key Adaptation and Part Number
March 21, 2014: Update to Information.

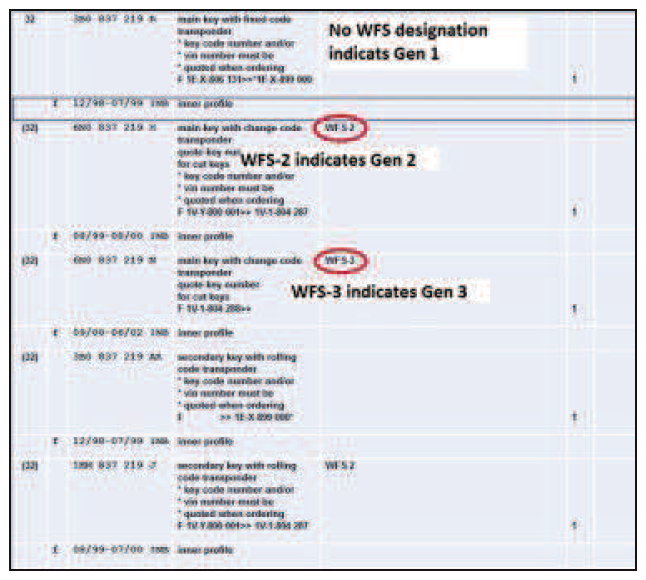

If new keys cannot be adapted, they may possibly be the incorrect part number. Cabrio is equipped with two generations (Gen2 and Gen3) of Immobilizer 2. Use the Immobilizer Control Module Part Number to distinguish between Gen2 and Gen3. When looking up the transponder key part number for a Cabrio; Please note that in ETKA under remarks, WFS-2 equals generation 2 and WFS-3 equals generation 3 (see illustration).
- Immobilizers where the part number starts with 6H0 are Gen2 and should only use key part numbers before and up to the VIN range in ETKA.
- Immobilizers where the part number starts with 6X0
are Gen3 and should only use key part numbers from the VIN range and up
as shown in ETKA. Currently, the correct part number for an immobilizer 2 generation 3 key is 7M3 837 219H. Always check ETKA for the latest part information.
