Side window, removing

Remove side trim. See SIDE TRIM, REMOVING .
Loosen main pillar inner seal.
Remove window slot inner seal.
Lower side window and unclip from window regulator -arrows-.
Remove side window upward out of window slot.

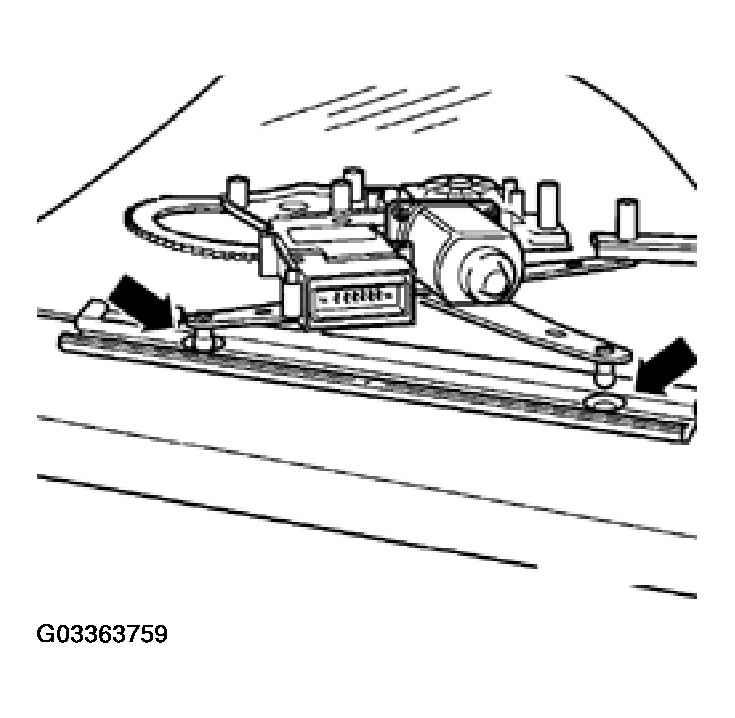

Fig 1: Removing Side Window

G03363759

Courtesy of VOLKSWAGEN OF AMERICA, INC.
