Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Module | Part of ABS hydraulic unit, on left front inner fender panel. See Figure. |

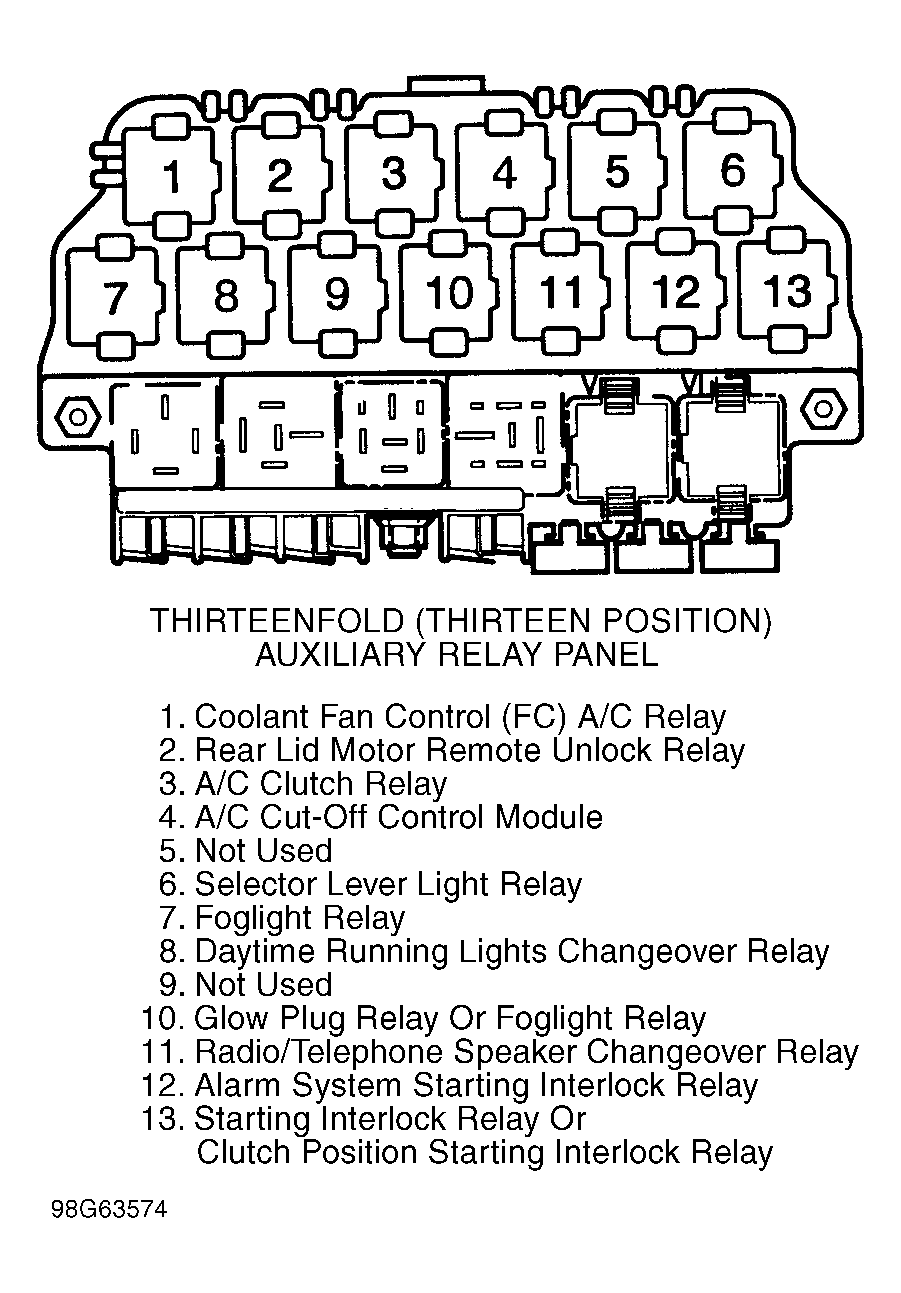

| A/C Cut-Off Control Module | On thirteen fold (thirteen position) auxiliary relay panel. See Figure. |
| Air Bag Control Module | Mounted on floor in front of center console, near ventilation ducts. See Figure. |
| Comfort System Central Control Module | Mounted on floorpan in protective box, under driver's seat & carpet. See Figure. |
| Door Control Module (Driver's Side) | Part of master power window switch assembly, on driver's door. See Figure. |
| Door Control Module (Left Rear) | Part of power window motor assembly, in left rear door. |
| Door Control Module (Passenger's Side) | Part of power window motor assembly, in passenger's front door. |
| Door Control Module (Right Rear) | Part of power window motor assembly, in right rear door. |
| Motronic Engine Control Module (ECM) (1.8L) | In protective box, on left rear corner of engine compartment. See Figure. |
| Motronic Engine Control Module (ECM) (2.8L) | In protective box, in left rear corner of engine compartment. See Figure. |
| Throttle Valve Control Module (1.8L) | On throttle body. See Figure. |
| Throttle Valve Control Module (2.8L) | On throttle body, on rear of manifold. See Figure. |
| Transmission Control Module (TCM) | On passenger's side floor cavity. |
