Vehicles with engine code ATW, AUG, AWM

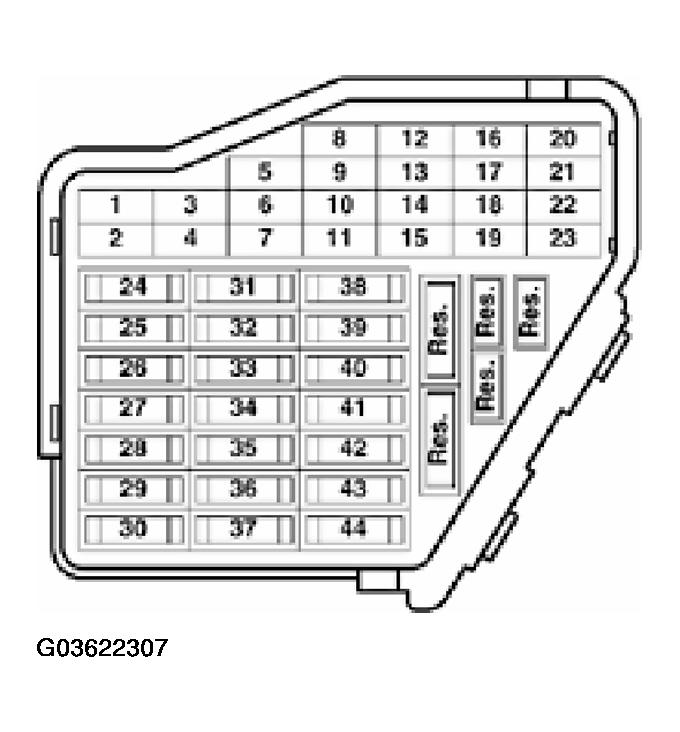

- Remove fuses 29 and 32. Fuse holder is located behind access panel at far left end of dash.
NOTE:
- By removing fuse 29, voltage supply to the ignition coils is interrupted.
- By removing fuse 32, voltage supply to the fuel injectors is interrupted.
