1.8L - Ignition/Glow Plug System - AEB, ATW, AUG, AWM
>>
Ignition/Glow, Plug System
>>
Ignition, servicing
>>
Check Camshaft Position (CMP) sensor
>>
Vehicles with engine code AEB
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Vehicles with engine code AEB
Check for open circuits in wires between test box and connector according to wiring diagram.
Terminal 1+socket 11
Terminal 2+socket 76
Terminal 3 + socket 67
Wire resistance: max: 1.5Ω

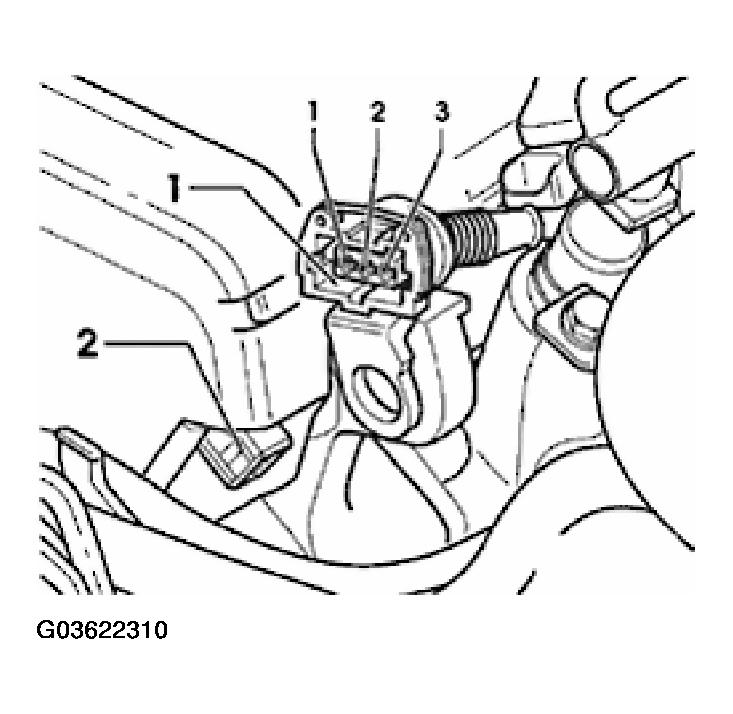

Fig 1: Identifying CMP Sensor Harness Connector Terminals (Engine Code AEB)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
