Camshaft adjustment, servicing (Vehicles with engine code AUG, AWM)

Cylinder head, removing and installing:

See 15 Cylinder head, valve train

Valvetrain, servicing:

See 15 Cylinder head, valve train

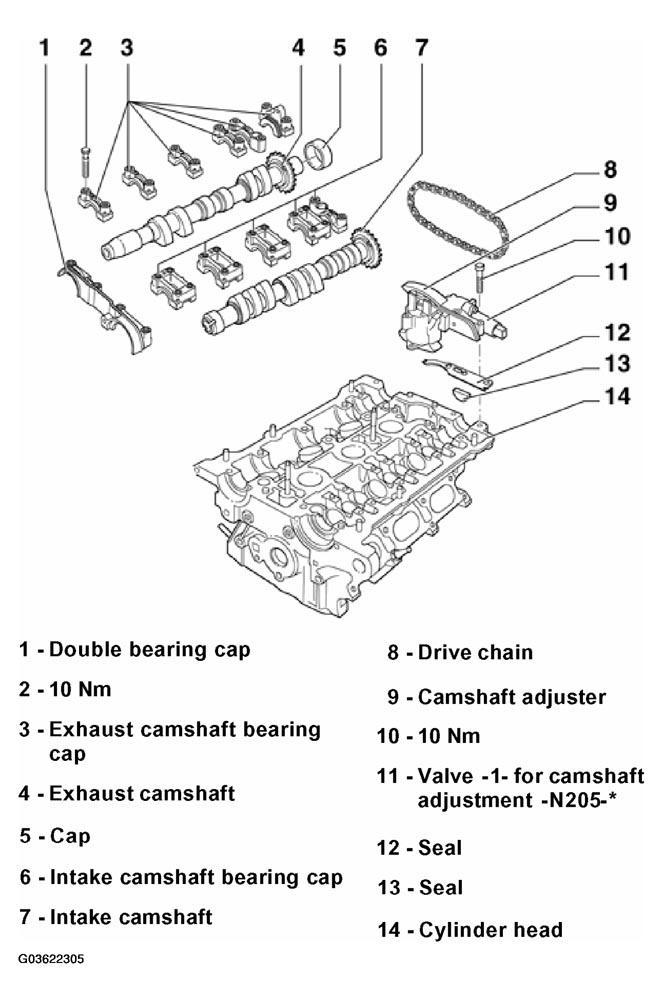

The following list pertains to Fig 1.

1. - Double bearing cap
2. - 10 Nm
3. - Exhaust camshaft bearing cap
4. - Exhaust camshaft
5. - Cap
   • replace
6. - Intake camshaft bearing cap
7. - Intake camshaft
8. - Drive chain
   • Mark direction of travel (installation position) before removing
9. - Camshaft adjuster
   • Check valves for camshaft adjustment, see CAMSHAFT ADJUSTMENT VALVE, CHECKING (VEHICLES WITH ENGINE CODE AUG, AWM)
10. - 10 Nm
11. - Valve -1- for camshaft adjustment -N205-*
    • only together with camshaft adjuster item  9, replacing
    • Checking, see CAMSHAFT ADJUSTMENT VALVE, CHECKING (VEHICLES WITH ENGINE CODE AUG, AWM)
12. - Seal
    • Rubber/metal seal
    • replace
13. - Seal
    • replace
14. - Cylinder head
Fig 1: Identifying Camshaft Components (Vehicles With Engine Code AUG, AWM)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
