Front Brakes

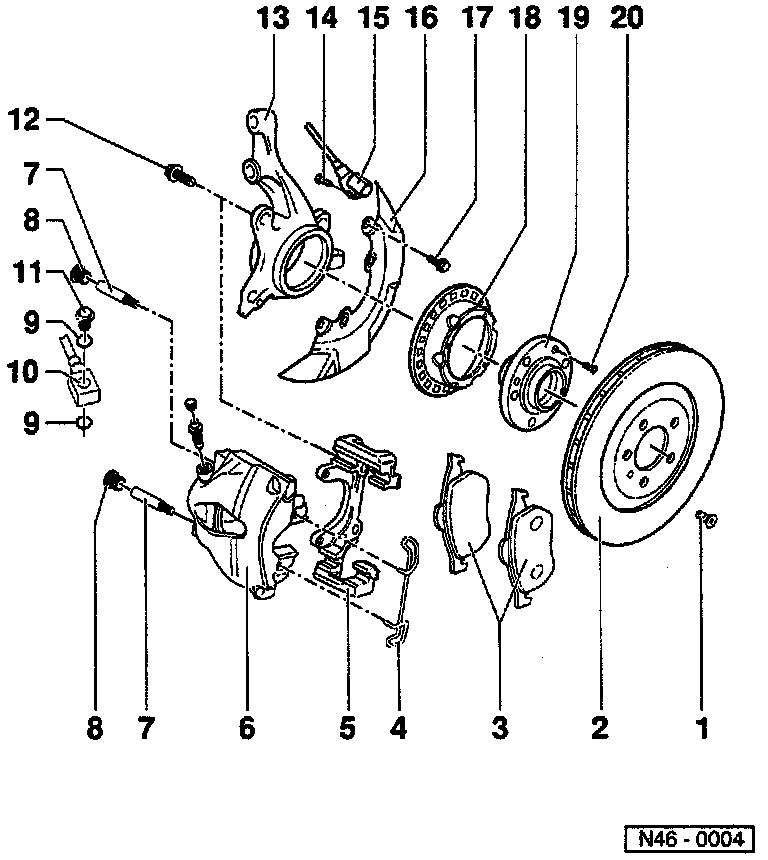

Exploded View Of Teves/ATE Front Brake:

Legend
1 Screw
2 Brake Disc
3 Brake Pads
4 Retaining Spring
5 Brake Carrier
6 Brake Caliper Housing
7 Guide Pins
8 Protective Cap
9 Seal
10 Brake Hose
11 Banjo Bolt
12 Ribbed Bolt
13 Wheel Bearing Housing
14 Hex Socket Head Bolt
15 Speed Sensor
16 Splash Plate
17 Hex Bolt
18 Speed Sensor Rotor
19 Hub
20 Countersunk Bolt
