Automatic Transmission: 096

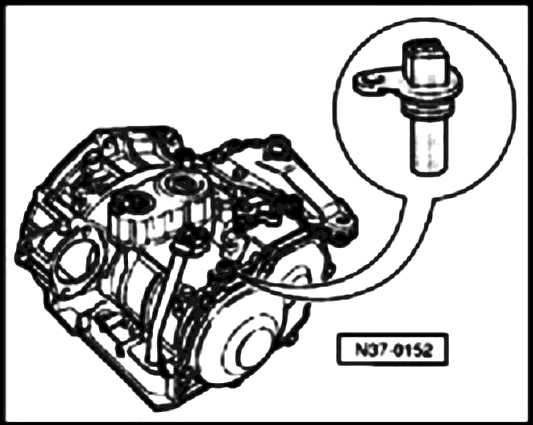

Vehicle speed sensor -G68-

Location: On top of transmission






Removing and installing

- Switch ignition off
- Disconnect harness connector from sensor
- Remove retaining bolt bolt and pull out sensor
- Replace seal

Install in reverse order of removal

- Tighten bolt to 10 Nm (7 ft lb)
