Removal & Installation: Notes

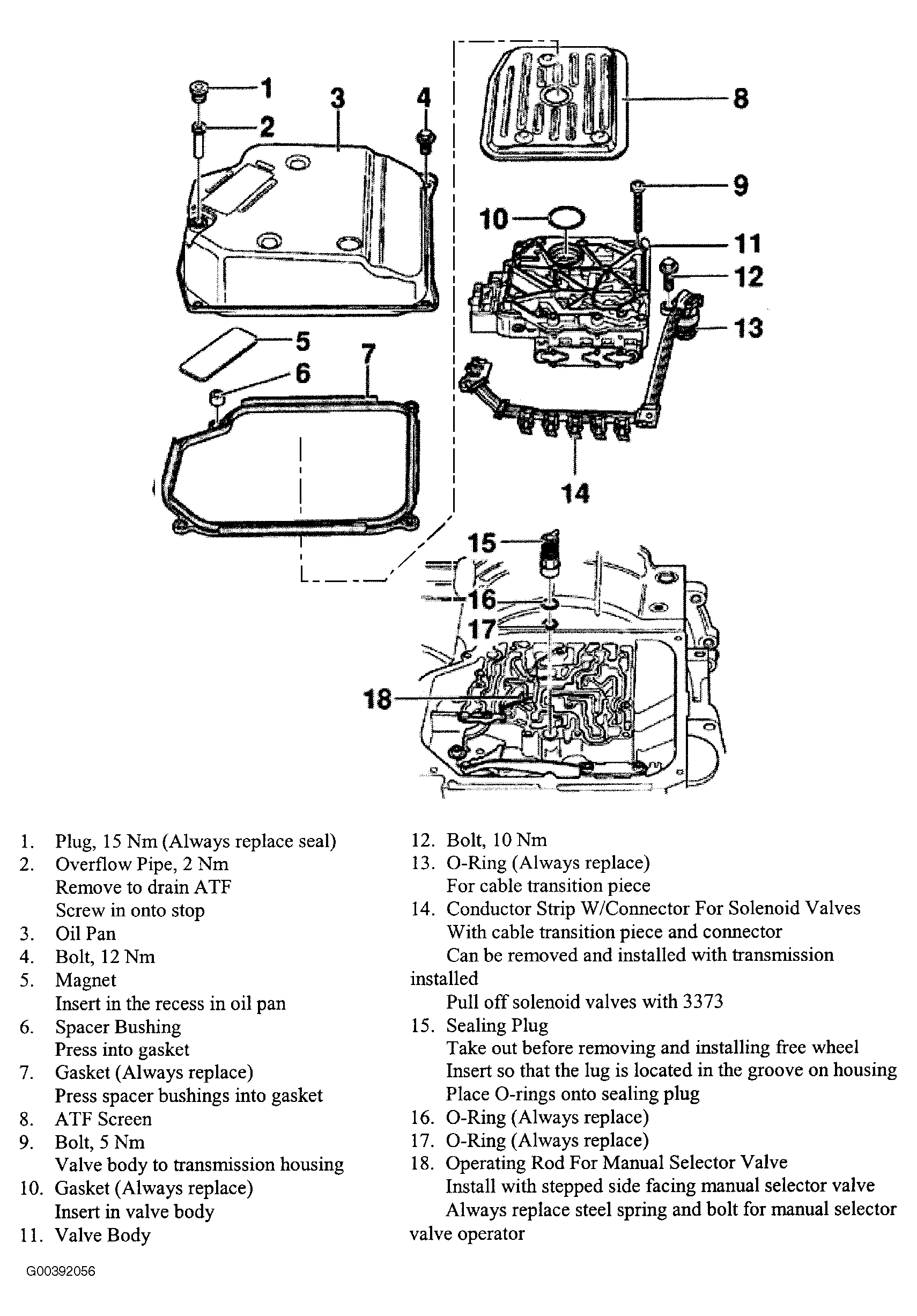

Fig 1: Exploded View Of Valve Body
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
