Fluid Capacity Chart (GROUP 00, NO. 99-12)

Publication date: 1999-07-06
Reference number: GROUP 00, NO. 99-12
Supersedes refnos: GROUP 00, NO. 99-09

FLUID CAPACITY CHART

TECHNICAL SERVICE BULLETIN

Reference Number(s): GROUP 00, NO. 99-12, Date of Issue: July 06, 1999

VOLKSWAGEN:	1998-1999 All Models
GROUP:	00 - General

Superceded Bulletin(s): GROUP 00, NO. 99-09, Date of Issue: June 17, 1999

NOTE: This bulletin supersedes Technical Bulletin Group 00, No. 99-09 dated June 17, 1999.

SUBJECT

Fluid Capacity Chart

Please note the change to the Jetta/Golf/Cabrio and New Beetle differential column. This corrects an error on the first version (00-99-09), please discard version 00-99-09.

The following fluid capacity chart (Fig 1 and Fig 2 ) covers all vehicles for 1998 and 1999. To prevent overfilling at oil changes, add approx. 1/2 qt. less than capacity, start engine, let run until engine operating temperature is approx. 60°C (140°F), switch ignition OFF, wait approx. 3 minutes, check dipstick, fill to full mark as indicated on dipstick (may be more or less than 1/2 qt. depending on model).

CAUTION: Part numbers are for reference only. Always check with your Parts Dept. for the latest parts information.

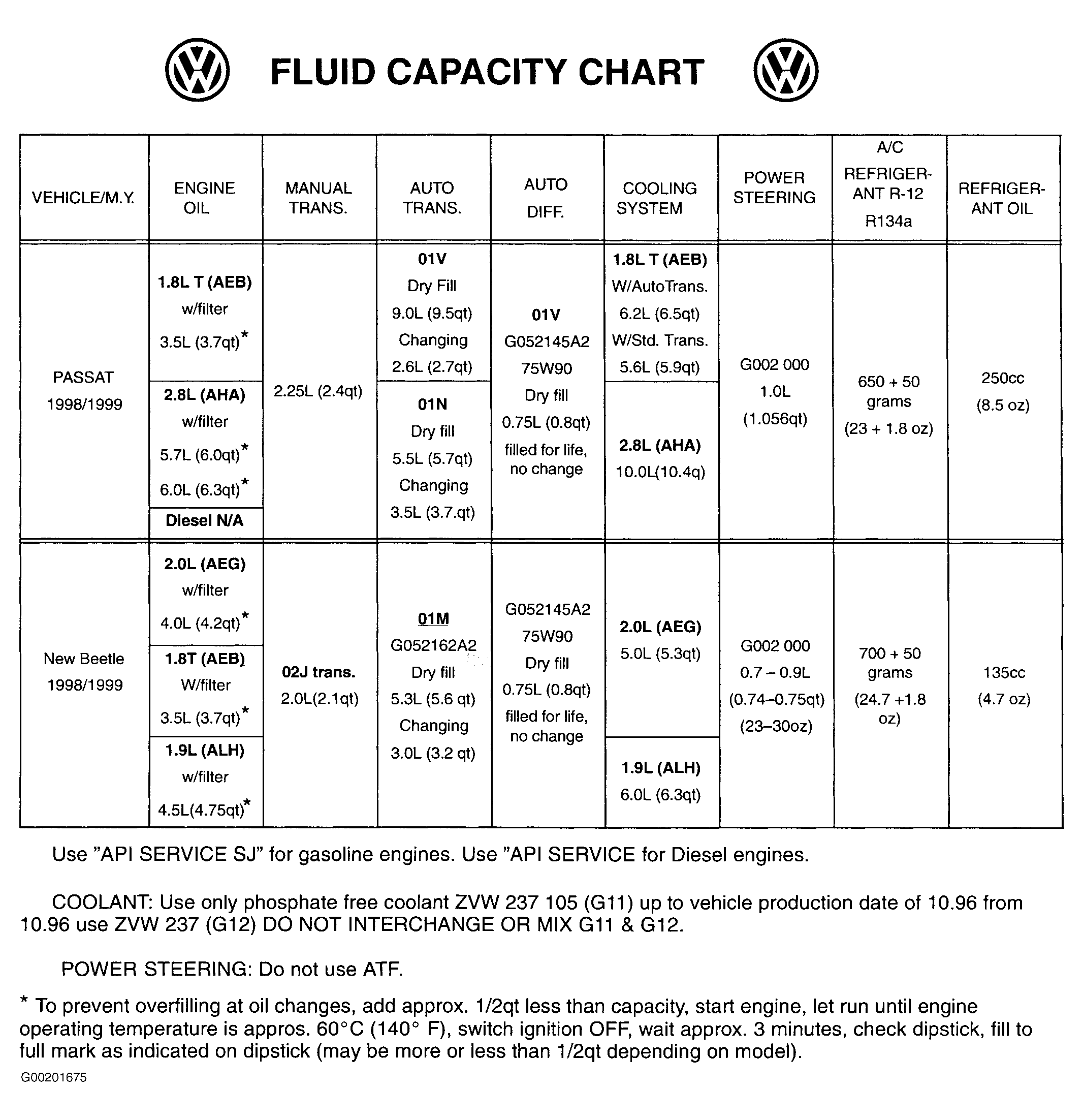

Fig 1: Fluid Capacity Chart - New Beetle, Passat

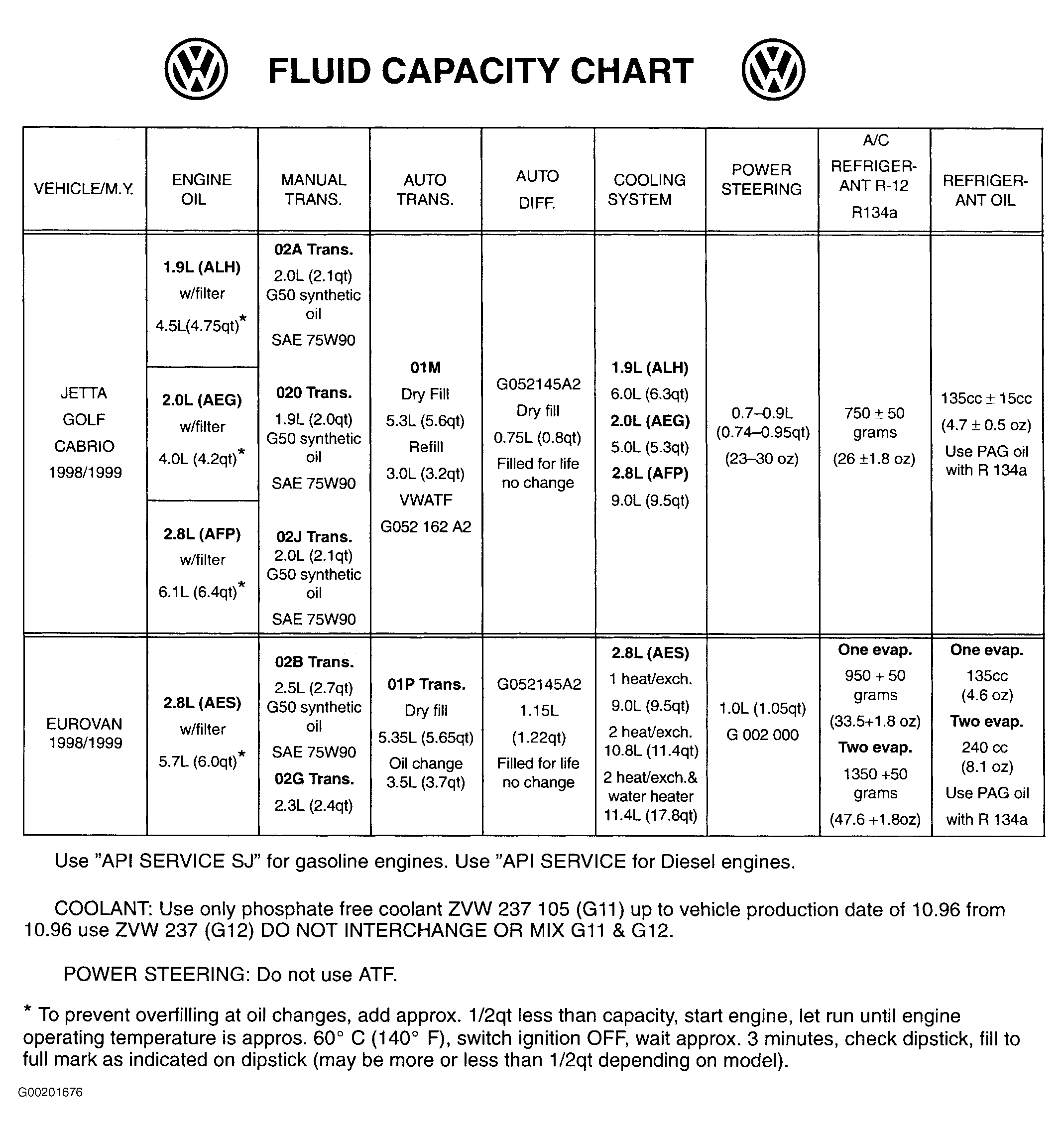

Fig 2: Fluid Capacity Chart - Jetta, Golf, Cabrio, EuroVan
